General

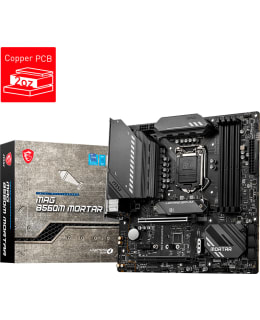

• Product type: Motherboard - micro ATX
• Chipset type: Intel B560
• CPU base: LGA1200 socket
• Maximum number of processors: 1
• Compatible processors: (supports 11th and 10th generation Intel Core i5/i7/i9, 10th generation Intel Core i3 / Pentium / Celeron processors)
Supported RAM
• Maximum size: 128 GB
• Technology: DDR4
• Bus Clock: 2133 MHz, 2666 MHz, 2933 MHz, 4000 MHz (OC), 4266 MHz (OC), 4600 MHz (OC), 3200 MHz, 5066 MHz (OC)
• Supported RAM integrity check: Non-ECC
• Stored or Buffered: Unbuffered
• Features: Dual-channel memory architecture, Intel Extreme Memory Profiles (XMP)
Audio
• Type: HD Audio (8-channel)
• Audio codec: Realtek ALC897
• Compatibility standards: High Definition Audio
LAN
• Network controller: Realtek RTL8125B
• Network connections: 2.5 Gigabit Ethernet
Extension / Connectivity
• Expansion slots: 1 x CPU, 4 x DIMM 288-pin, 1 x PCIe 4.0 x16 (PCIe 4.0 x16 mode (11th generation Intel processors); PCIe 3.0 x 16 mode (10th generation Intel processors) ), 1 x PCIe 3.0 x16 (x4 mode), 1 x PCIe 3.0 x1
• Memory connections: SATA connectors: 6 x SATA, SATA-600 / PCIe 4.0 connectors: 1 x M.2, PCIe 3.0 connectors: 1 x M.2
• RAID features: Intel Smart Response Technology
• Connections: 1 x HDMI, 1 x DisplayPort, 3 x USB 3.2 Gen 1, 1 x USB-C Gen2x2, 4 x USB 2.0, 1 x audio line-out - mini connector, 1 x microphone - mini connector, 1 x audio line-in - mini connector , 1 x audio line-out (center/subwoofer) - mini jack, 1 x audio line-out (rear) - mini jack, 1 x TOSLINK
• Internal connections: 4 x USB 2.0, 2 x USB 3.2 Gen 1, 1 x USB-C Gen2, 1 x audio
• Power connectors: 4-pin ATX12V connector, 24-pin main power connector, 8-pin ATX12V connector
Characteristics
• BIOS features: MSI ClickBIOS 5
• Hardware features: Digital PWM, supports AMD CrossFireX technology, MSI Audio Boost, anti-pop function, MSI Steel Armor, Double ESD Protection, Intel Optane Memory Ready, M.2 Shield FROZR, pre-mounted I/O shield, MSI Core Boost, 12+2+1 Phase Power Design
Change
• Included accessories: Case label, 2 x M.2 screw, screwdriver, 2 stands for M.2 plug, MAG stickers
• Included cables: 2 x Serial cable ATA
• Compatibility standards: DisplayPort 1.4
• Width: 24.4 cm
• Depth: 24.4 cm
