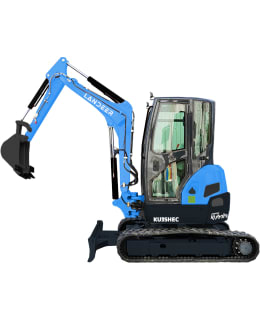

Landeer KU35HEC is a well-equipped and modern, sturdy rubber-tracked excavator built from high-quality components.
The power source for the KU35HEC excavator is a Kubota-manufactured economical Euro5 and EPA-compliant powerful, yet quiet and vibration-free four-cylinder diesel engine. The advanced hydraulic system features a load sensing system that automatically adjusts hydraulic load according to the workload, resulting in precise control and smooth digging operation.
In addition to basic features, Landeer KU35HEC is equipped with many innovative features not previously available in this price range of excavators:
- Air-conditioned and ergonomic ROPS safety cab
- Load sensing system
- Automatic idle
- Automatic reduction gearbox
- Automatic hydraulic leak shutdown valve
- The excavator's body panels open entirely, and hydraulic inspection and service points are centralized on the right side of the machine, making maintenance procedures easier.
The Landeer KU35HEC, equipped with a swing boom, is delivered with quick couplings for attachments and three buckets.
Technical specifications:- Operating weight: 3550 kg
- Bucket capacity: 110 liters
- Speed slow/fast: 0 - 3.3 km/h
- Gradeability: 30%
- Ground pressure: 32 kPa
- Maximum bucket force: 2754 kg
- Boom force: 1833 kg
- Maximum digging radius: 4830 mm
- Maximum digging depth: 2830 mm
- Maximum digging height: 4560 mm
- Maximum dumping height: 3180 mm
- Expandable undercarriage: 1550 – 1700 mm
- Transport length: 4522 mm
- Transport width: 1550 mm
- Transport height: 2485 mm
- Ground clearance: 525 mm
- Bucket width: 400 mm
- Boom length: 2220 mm
- Arm length: 1620 mm
- Blade width: 1550 mm
- Engine manufacturer: Kubota
- Engine type: V1505 EURO5
- Maximum power: 25 hp
- Maximum power: 18.2 kW
- Maximum speed: 2300 rpm
- Displacement: 1500 cc
- Number of cylinders: 4
- Engine cooling: Liquid cooling
- Engine oil capacity: 4 liters
- Fuel type: Diesel
- Fuel consumption: 1.5 - 1.8 l/h
