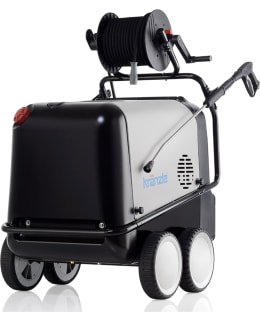

Kränzle Therm 1017 Tr. QC is a highly efficient hot water pressure washer designed for demanding daily professional use and, for example, for heavy machinery or agricultural equipment. The special brass pump head, stepless pressure adjustment, thermostat for regulating water temperature, ceramic-coated stainless steel plungers, and TST system are just a few features that reflect Kränzle's quality. The Therm 1017 Tr. has an impressive water output of 16.7 liters per minute (1000 l/h), making it effortless to wash trucks, agricultural machines, industrial facilities, and other large objects.
The working pressure of the washer can be adjusted steplessly according to the surface being cleaned, between 30-150 bar, and the detergent suction function allows mixing detergent into the high-pressure spray, further enhancing the cleaning efficiency of the device. The thermostat on top of the device allows adjusting the water temperature between 12-80 °C. The ECO mode in the pressure washer reduces fuel consumption, allowing the washer to operate in the most economical temperature ranges. With the ECO mode, fuel consumption decreases from a maximum heating power of 7.4 liters per hour to as low as 6.3 liters per hour.
Additionally, the washer features a full-stop system with delayed motor shutdown, meaning the system stops the motor with a slight delay when the start handle is released. When the start handle is pressed again, the motor starts immediately. The motor and pump run only as long as they are really needed, which significantly reduces motor wear and noise from the washer. The off-road full rubber wheels ensure that the washer can be transported to even challenging locations, and the parking brake allows the washer to be left on uneven or sloping surfaces. Note that the washer operates on three-phase power (400V).
Features:
Large full rubber wheels make the washer suitable for off-road use
20-meter steel-braided high-pressure hose
Detergent suction
Stainless steel spray lance with flat nozzle
Technical Specifications:
Working pressure, steplessly adjustable: 30-150 bar
Max. allowed overpressure: 170 bar / 17 MPa
Hot water output (supply 12 °C), steplessly adjustable: 12 – 80 °C
Water flow: 5-16.7 l/min
Steam level max.: 30 bar/140 °C
Fuel tank with fill level monitoring: 25 l
Heating power: 68 kW
Motor speed: 1,400 r/min
Power consumption/output: 5.5 kW / 4.0 kW
Electrical connection: 400V 3~, 8.5 A 50Hz
Weight with hose reel: 212 kg
Included in the delivery:
Kränzle Therm 1017 Tr. QC
Steel-braided high-pressure hose, 20 m
High-pressure gun
Stainless steel spray lance with flat nozzle and quick connector
Inlet water filter
