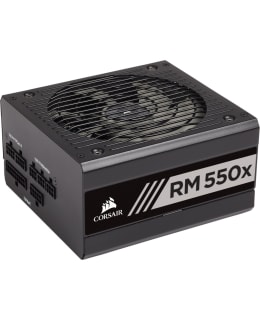

• Product name: CORSAIR RM550x 80 PLUS Gold Modular PSU
• Description: CORSAIR RMx Series RM550x - 2018 Edition - power supply (internal) - ATX12V 2.4/ EPS12V 2.92 - 80 PLUS Gold - AC 100-240 V - 550 watts - Europe
General
• Device type: Power supply - internal
• Technical data compliance: ATX12V 2.4/ EPS12V 2.92
• PSU size and format: ATX
• Localization: Europe
Power source
• Input voltage: AC 100-240 V
• Required frequency: 47 - 63 Hz
• Power output connector details: 1 x power 24 pin ATX with detachable 4 pin section, 1 x power 8 pin EPS12V with detachable 4 pin ATX12V section, 4 x 4 pin internal power, 6 x 15 pin Serial ATA power, 2 x 8 pin PCI Express power with detachable 2 pin section
• Output voltage: +3.3, +5, ±12 V
• Power capacity: 550 watts
• Output current: +3.3V - 25 A, +5V - 25 A, +12V - 45.8 A, -12V - 0.8 A, +5VSB - 3 A
• Efficiency: 0.9
• Modular cable management: Yes
• 80 PLUS Certification: 80 PLUS Gold
Change
• Included accessories: Screws, case label, 100 mm disk adapter, cable clamps, cable bag
• Included cables: Power cord kit
• Mean time between failures (MTBF): 100,000 hours
• Cooling system: 140 mm fan
• Features: Overvoltage protection, overcurrent protection, low voltage protection, short circuit protection, temperature controlled fan, Zero RPM fan mode, splined bearing cooling fan, fully modular
Manufacturer's warranty
• Maintenance and support: Limited warranty - 10 years
Dimensions & weight
• Width: 15 cm
• Depth: 16 cm
• Height: 8.6 cm
