Showy and powerful Black Edition!

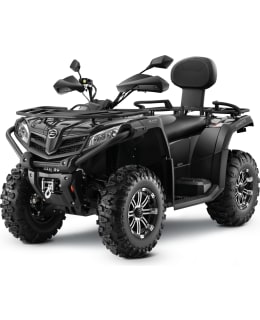

The CFORCE 520L Black Edition is a light and nimble ATV whose 495 cc engine offers incredible acceleration.
CFORCE 520L Black Edition is advertised as suitable for both recreational and utility use.
The standard equipment includes a powerful winch and a rugged tow hook to help you handle difficult jobs. The CFORCE 520L Black Edition is available in a long version that can be registered for 2 people.
- 4 valves/cyl
- 4-stroke
- 26kW/35hp
- EFI
- Long version (reg. 2 people)
- Hydraulic disc brakes
Technical information:
- LxWxH (mm) 2300x1100x1350
- Seat height (mm) 880
- Ground clearance (mm) 250
- Wheelbase (mm) 1460
- Net weight (kg)* 457
- Max load (kg)* 200
- Tank volume (L) 15
- Engine type 1 cyl., 4-stroke, 4 ventt./cyl.
- Cylinder volume 495 cc
- Cooling system Liquid-cooled
- Diameter / stroke length (mm) 91x76.2
- Compression ratio 10.3:1
- Maximum power (kw/hp) 26kw/35hp
- Fuel system EFI
- Ignition system ECU
- Transmission CVT
- 2WD/4WD 2WD/4WD
- Brakes front/rear Hydraulic disc brakes
- Suspension Double A-arms
- Shock absorption Oil shock absorbers
- Tires front/rear DXB-D (”) 25x8R12/25x10R12
- Wheels Aluminum
- Instrument panel LCD
*Incl. 75 kg of the driver's weight
