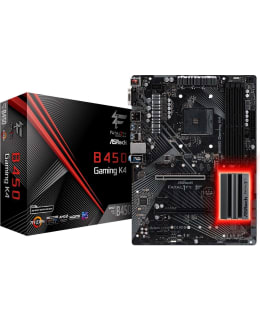

• Product name: ASROCK B450 Gaming K4 Socket AM4
• Description: ASRock Fatal1ty B450 Gaming K4 - Motherboard - ATX - Socket AM4 - AMD B450 - USB 3.1 Gen 1, USB-C Gen2, USB 3.1 Gen 2 - Gigabit LAN - Onboard graphics (CPU required) - HD Audio (8-channel )
• EAN code:
• Manufacturer's warranty: 24 months
General
• Product type: Motherboard - ATX
• Chipset type: AMD B450
• Processor base: Socket AM4
• Maximum number of processors: 1
• Compatible processors: Ryzen
Supported RAM
• Maximum size: 64 GB
• Technology: DDR4
• Bus Clock: 2400 MHz, 2133 MHz, 2667 MHz, 2933 MHz (OC), 3200 MHz (OC)
• Supported RAM integrity check: Non-ECC, ECC
• Stored or Buffered: Unbuffered
• Features: Dual channel memory architecture
Graphics
• Max reserved RAM size: 2 GB
Audio
• Type: HD Audio (8-channel)
• Audio Codec: Realtek ALC892
• Compatibility standards: High Definition Audio, Premium Blu-ray audio support, Sound Blaster Cinema 5
LAN
• Network controller: Realtek RTL8111H
• Network connections: Gigabit Ethernet
Extension / Connectivity
• Expansion slots: 1 x CPU 4 x DIMM 288-pin 1 x PCIe 3.0 x16 (x16 mode (with 1st and 2nd Generation Ryzen CPU); x8 mode (with Ryzen with Radeon Vega Graphics / AMD 7th Generation A-series CPU)) 1 x PCIe 3.0 x16 (x4 mode (with 1st and 2nd Generation Ryzen / Ryzen with Radeon Vega Graphics CPU); x2 mode (with AMD 7th Generation A-series CPU)) 4 x PCIe 2.0 x1
• Memory connections: SATA-600 connectors: 4 x 7-pin serial ATA - RAID 0 / RAID 1 / RAID 10 SATA-600 / PCIe 3.0 connectors: 1 x M.2 PCIe 3.0 connectors: 1 x Ultra M.2 ASMedia ASM1061: SATA-600 connectors: 2 x 7pin Serial ATA
• Connections: 1 x PS/2 keyboard / mouse 1 x LAN (Gigabit Ethernet) 1 x VGA 1 x DisplayPort 1 x HDMI 2 x USB 2.0 4 x USB 3.1 Gen 1 1 x audio line-in - mini-jack 1 x audio line-out - mini-jack 1 x microphone - mini-jack 1 x USB 3.1 Gen 2 1 x USB-C Gen2
• Internal connections: 4 x USB 2.0 - header 2 x USB 3.1 Gen 1 - header 1 x serial - header 1 x audio - header
• Power connectors: 24-pin main power connector, 8-pin ATX12V connector
Characteristics
• BIOS type: AMI
• BIOS features: Multilingual BIOS, JumperFree, SMBIOS 2.3 support, UEFI BIOS, ACPI 5.1 support
• Hardware monitoring: CPU core temperature, chassis temperature, CPU fan speedometer, case fan speedometer, system voltage, CPU core voltage (core voltage)
• Sleep / Wake up: LAN wake up (WOL, wake on LAN)
• Hardware features: ASRock Instant Flash, All-Solid Capacitor motherboard Design, HDCP Compliant, 15µ Gold Contact, Supports AMD CrossFireX Technology, Supports AMD Quad CrossFireX Technology, Digi Power Design, ESD Protection, Energy Efficient Ethernet 802.3az, Preboot eXecution Environment (PXE), Triple Monitor, ELNA Audio Capacitors, ASRock Full Spike Protection, ASRock APP Shop, ASRock Super Alloy, High Density Glass Fabric PCB, ASRock Full HD UEFI, ASRock Easy RAID Installer, Sapphire Black PCB, ASRock Live Update, ASRock Ultra M.2, ASRock Steel Slots, Premium Power Choke, 9 Phase Power Design, 2oz Copper PCB, AMD StoreMI technology
Change
• Included accessories: I/O back panel, 2 x M.2 screw
• Included cables: 2 x Serial cable ATA
• Included software: Drivers and utilities, Antivirus (trial version), Google Chrome Browser, Google ChromeToolbar, ASRock XFast LAN, ASRock F-Stream, ASRock Polychrome RGB
• Compatibility standards: FCC, EuP Ready, ErP Ready
• Width: 30.5 cm
• Depth: 22.4 cm
