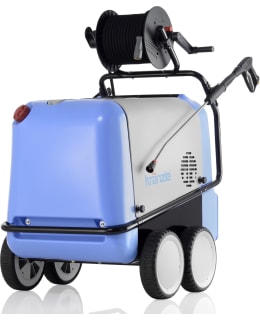

This Kränzle hot water pressure washer is designed for demanding professional use.
The washer features a steplessly adjustable working pressure and a digital control panel for adjusting the water temperature, making it suitable for various applications. Kränzle’s crankshaft pump includes an integrated drain valve and pressure switch. The high-pressure gun features a quick-release connection. The full-stop system with delayed motor shutdown extends seal lifespan and reduces power consumption.
The washer is equipped with a high-quality Kränzle inline pump:
Reliable technology, convincingly further developed: The crankshaft moves the plungers in the inline pump series via the connecting rod. This unique design enables significantly greater water flow with much higher rinsing efficiency than conventional pumps and ensures impressive performance:
Power transmission similar to a car engine, using a robust crankshaft, connecting rod, and plungers
Extremely long service life
Integrated discharge valve
Full-stop system with delayed motor shutdown
Features:
D12 quick coupling
Kränzle inline pump
Full-stop system with delayed motor shutdown
Safety switch
Pressure regulation
Detergent suction
Parking brake
Direct suction: Suction height 2.5 m
Water tank: capacity 12 l
Hot Water Features:
Digital thermostat
Flow monitor
Burner preheating
Optical flame monitoring
Overheat protection (exhaust gas temperature over 260 °C)
Burner shutdown when heating oil runs out
Operating hour counter
Fuel tank: 35 l
Additional Information:
7.5 m power cable
Protective frame made of stainless steel
Working pressure, steplessly adjustable 30-170 bar / 3-17 MPa
Maximum allowable overpressure 190 bar / 19 MPa
Electrical connection 400V / 3~ / 50 Hz / 14.3 A
Motor speed 1440 rpm
Water flow 22 l/min / 1320 l/h
Power consumption / Power output 8.0 kW / 6.3 kW
Dimensions 1050 × 800 × 1300 mm
Weight 228 kg
Equipment:
20 m steel-reinforced high-pressure hose
Starlet high-pressure gun with safety latch
Stainless steel spray lance with flat nozzle
