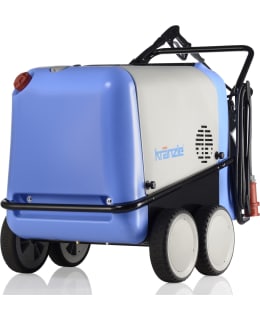

Kränzle’s new Therm 1200-RP hot water pressure washer with D12 quick coupling and automatic hose reel for serious professional use.
Max. working pressure 190 bar (overpressure 210 bar), flow rate 20 l/min. 400 V long-life 1400 rpm low-speed motor. 20 m hose with automatic hose reel. Starlet D12 quick coupling handle. Flat nozzle. Detergent suction. Integrated 12 l water tank to balance pressure fluctuations. Large, sturdy wheels with a parking brake.
The washer is equipped with a high-quality Kränzle inline pump:
Reliable technology, convincingly further developed: The crankshaft moves the plungers in the inline pump series via the connecting rod. This unique design enables significantly greater water flow with much higher rinsing efficiency than conventional pumps and ensures impressive performance:
Power transmission similar to a car engine, using a robust crankshaft, connecting rod, and plungers
Extremely long service life
Integrated discharge valve
Full-stop system with delayed motor shutdown
Features:
D12 quick coupling
Kränzle inline pump
Automatic hose reel
Full-stop system with delayed motor shutdown
Safety switch
Pressure regulation
Detergent suction
Parking brake
Direct suction: Suction height 2.5 m
Water tank: capacity 12 l
Hot Water Features:
Digital thermostat
Flow monitor
Burner preheating
Optical flame monitoring
Overheat protection (exhaust gas temperature over 260 °C)
Burner shutdown when heating oil runs out
Operating hour counter
Fuel tank: 35 l
Technical Specifications:
Working pressure: 70-190 bar / 7-19 MPa
Water flow: 20 l/min / 1200 l/h
Maximum allowable pressure: 210 bar / 21 MPa
Motor speed: 1400 rpm
Connection: 400V 3~ 50 Hz 14.3 A
Power consumption: 8.0 kW / Power output: 6.3 kW
Power cable: 7.5 m
Plug: CEE 32A
Dimensions (L x W x H): 1300 x 800 x 1015 mm
Weight: 240 kg
Hot Water Technical Data:
Hot water output: 12-80 °C
Steam level: 140 °C
Heating oil consumption / max heating power: 7.1 kg/h / 8.5 l/h
Heating oil consumption ∆T 45°: 5.6 kg/h / 6.6 l/h
Heating power: 84 kW
Standard Accessories:
20 m pressure hose with automatic hose reel DN8 K41083
High-pressure gun Starlet K123272
Flat nozzle, size 065 K12420-D25065
Water inlet filter K13310
