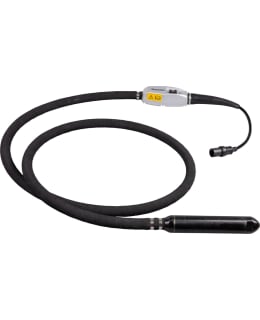

Erittäin tehokas suurtaajuus betonivibra Makita 36V reppuakkujärjestelmään. Täryvarren halkaisija 52mm ja varren pituus 3,0m. Soveltuu suurempien kiinteistöjen ja rakenteiden valutöihin. Virtalähde 36V reppuakkujärjestelmä.
Isommille työmaille tarkoitettu erittäin tehokas betonivibra Makitan 36V reppuakkujärjestelmään. Suurtaajuusmoottori sijaitsee täryvarren päässä, jolloin varsi pysyy erittäin taipuisana, eikä tehohäviöitä synny erillisen akselin pyörittämisestä. Myös käyttäjän käsiin kohdistuva tärinää poistuu lähes täysin. Virtalähteen ollessa käyttäjän selässä myös käsissä oleva paino pienenee ja laitetta on mukavampi käyttää.
Täryvarren halkaisija 52mm ja koko varren pituus 3,0 metriä.
Yhdistetään Makitan 36V reppuakkujärjestelmään, jossa kaksi eri vaihtoehtoa virranlähteeksi: 1. Kannettava reppuakku PDC1200, joka ladataan erillisellä latauslaitteella. Reppuakun paino 10,4kg ja käyttöaika täydellä akulla yli 3 tuntia 2. Kannettava akkureppu PDC01, johon ladataan 4kpl Makita 18V LXT akkuja. Akkurepun paino 7,0kg ja käyttöaika 6,0Ah akuilla noin 1 tunti
Tekniset tiedot: • virtalähde: akku • akkutyyppi: reppuakku • jännite: 36V • kierrosluku: 12000 minˉ¹ • täryvarren halkaisija: 52 mm • täryvarren pituus: 3,0 m • paino akkurepun PDC01 kanssa: 13,7 kg
A very efficient concrete vibrator for Makita's 36V backpack battery system intended for larger construction sites. The high-frequency motor is located at the end of the vibrating arm, so the arm remains very flexible, and there are no power losses from rotating a separate shaft. The vibration affecting the user's hands is also almost completely eliminated. When the power source is on the user's back, the weight in the hands also decreases and the device is more comfortable to use.
The diameter of the vibrating arm is 52 mm and the entire length of the arm is 3.0 meters.
Connects to Makita's 36V backpack battery system, with two different options for power source: 1. Portable backpack battery PDC1200, which is charged with a separate charger. The weight of the backpack battery is 10.4 kg and the operating time with a full battery is more than 3 hours 2. Portable battery backpack PDC01, which can be used to charge 4 Makita 18V LXT batteries. The weight of the battery backpack is 7.0 kg and the operating time with 6.0 Ah batteries is about 1 hour
Technical information: • power source: battery • battery type: backpack battery • voltage: 36V • RPM: 12000 minˉ¹ • vibration arm diameter: 52 mm • vibration arm length: 3.0 m • weight with battery backpack PDC01: 13.7 kg
