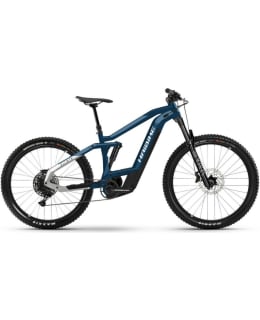

Haibike Allmtn 3 i625Wh 12G SX Eagle
- Frame: aluminium 6061, Integrated Motor, SkidPlate, Tapered head tube, thru-axle M12 (1.75) x 148mm, disc brake Post Mount, Travel: 160mm
- Motor: Bosch Performance CX GEN4, 250W, 85Nm, 25km/h
- Accumulator: Bosch PowerTube, 625 Wh
- Charger: Bosch Standard Charger 4A
- Display: Bosch Purion
- Rear shock: RockShox Deluxe Select Plus, air
- Fork: RockShox Yari RC, air, Travel: 160mm, Aluschaft 1 1/8 - 1 1/2'' tapered, thru-axle Boost
- Shifters: Sram SX Eagle, trigger switch
- Handlebar: Haibike Components TheBar +++ Gravity 780mm
- Headset: A-Head Tapered, Cartridge, aluminium
- Stem: Haibike Components TheStem 2, A-head, Bar bore: 31.8mm
- Brake set: - - -
- Front brake: Shimano MT420, 203mm, aluminium, 4-piston disc brake
- Rear brake: Shimano MT420, 203mm, aluminium, 4-piston disc brake
- Brake levers: Shimano MT401, aluminium
- Shifting system: Sram SX Eagle, 12 speed
- Chain: Sram SX Eagle
- Front derailleur: - - -
- Chain guide: Nylon directmount
- Crankset: - - -
- Bottom bracket: - - -
- Pedals: Freeridepedal mit Reflektor, aluminium
- Rear derailleur: Sram SX Eagle, 12 speed
- Cassette: Sram Eagle PG1210, 11-50 teeth
- Wheel set: - - -
- Wheel size: 27,5" (650B)
- Rims: Rodi Tryp 30, with eylets, hollow rim, aluminium
- Spokes: Sapim Leader, black
- Front wheel hub: Shimano MT400-B Steckachse 15x110mm
- Rear wheel hub: Shimano MT400-B Steckachse 12x148mm
- Tyres: Maxxis Minion DHF II, 65-622
- Saddle: Selle Royal Vivo
- Seat post: Haibike Components TheSeatpost++, 31.6mm, aluminium
- Total permitted weight: 120kg
