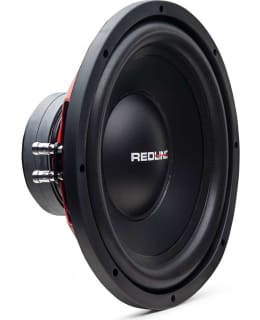

DD Audio RL-SW12-D2 Redline 12" subwoofer
Toimituskulut alk
4,90€
DD Audio Redline RL-SW12-D2 - 12″ subwoofer
REDLINE SW -sarjan subwooferit tarjoavat äärimmäistä suorituskykyä edulliseen hintaan. Nämä subwooferit toimivat hyvin ekä suljetussa kotelossa, että refleksikotelossa.
Tekniset tiedot:
The REDLINE SW Series subwoofers offer extreme bass and value. These Hi Def Tuned subwoofers work great in sealed and small vented enclosures, on low to moderate power levels. They’re equipped with all the performance features needed to handle the rigors of daily pounding. High Temp 2” Voice Coil DVC 2 Ohm, DVC 4 Ohm EROM Surround Vented Stamped Steel Frame Vented Backplate Push Terminals
REDLINE SW -sarjan subwooferit tarjoavat äärimmäistä suorituskykyä edulliseen hintaan. Nämä subwooferit toimivat hyvin ekä suljetussa kotelossa, että refleksikotelossa.
Tekniset tiedot:
- Tehonkesto: 300Wrms / 600W
- 2x2Ohm
- 2″ puhekela
- Xmech 25mm
- FS 33Hz
- Speaker Size (In): 12
- Impedance: D2
- VCD (In): 2
- Piston Diameter (In): 10
- Fs (Hz): 33
- Qms: 8.673
- Qes: 0.54
- Qts: 0.508
- Vas: 65.339
- dBSPL: 89
- Xmech (MM): 25
- Xmax (MM): 8
- Frame OD (In): 12.22
- Frame OD w/Gasket (In): 12.4
- Mounting Diameter (In): 11
- Mounting Depth (In): 5.34
- Motor Diameter (In): 5.27
- Motor Depth (In): 1.7
- Magnet Weight (Oz): 55
- Woofer Displacement (CuFt): 0.05
- Sealed Enclosure (CuFt): 0.8 - 1.5
- Ported Enclosure (CuFt): 1.0 - 1.75
The REDLINE SW Series subwoofers offer extreme bass and value. These Hi Def Tuned subwoofers work great in sealed and small vented enclosures, on low to moderate power levels. They’re equipped with all the performance features needed to handle the rigors of daily pounding. High Temp 2” Voice Coil DVC 2 Ohm, DVC 4 Ohm EROM Surround Vented Stamped Steel Frame Vented Backplate Push Terminals
- Speaker Size (In):12
- Watts RMS:100 - 300
- Watts Peak:600
- Impedance:D2 / D4
- VCD (In):2
- Piston Diameter (In):10
- Fs (Hz):33
- Qms:8.673
- Qes:0.54
- Qts:0.508
- Vas:65.339
- Xmech (MM):25
- Xmax (MM):8
- Frame OD (In):12.22
- Frame OD w/Gasket (In):12.4
- Mounting Diameter (In):11
- Mounting Depth (In):5.34
- Motor Diameter (In):5.27
- Motor Depth (In):1.7
- Magnet Weight (Oz):55
- Woofer Displacement (CuFt):0.05
- Sealed Enclosure (CuFt):0.8 - 1.5
- Ported Enclosure (CuFt):1.0 - 1.75
- Koko, tuumaa: 12
- Enimmäissyöttövirta, W: 600
- Nimellissyöttövirta, W: 300
- Takuu: 1 vuosi
- EAN: 850013938643
- Tuotenumero: 103188248
- Toimittajan tuotenumero: DDRL-SW12-D2
