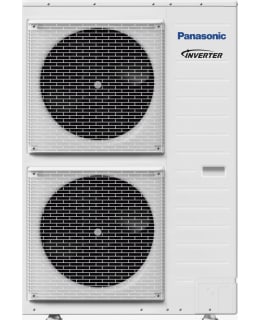

Panasonic Aquarea WH-UX09HE8 is a 9kW Split air-to-water heat pump outdoor unit that transfers heat in the refrigerant from the outdoor unit to the indoor unit.
The 3-phase T-CAP H generation outdoor unit is suitable for use with the Panasonic All in One (WH-ADC0916H9E8) or Bi-Bloc (WH-SXC09H3E8) indoor unit. In addition to the indoor unit, a mandatory outdoor unit base resistor Panasonic product number CZ-NE3P is required for defrosting the outdoor unit. Please note that Split air-to-water heat pumps require a license for the concept of refrigerant.
Example units of air water system- All in One
- Panasonic Aquarea WH-UX09HE8 9kW Split outdoor unit
- Panasonic Aquarea All in One WH-ADC0916H9E8 split indoor unit
- Includes a 185 L hot water tank, we also recommend a buffer tank (not mandatory)
- Panasonic outdoor unit bottom resistor CZ-NE3P
- Bi-Block
- Panasonic Aquarea WH-UX09HE8 9kW Split outdoor unit
- Panasonic Aquarea Bi-Block WH-SXC09H3E8 indoor unit
- You also need a hot water tank and a buffer tank (min 200L / 100L)
- Panasonic outdoor unit bottom resistor CZ-NE3P
Buying a device containing F-gases - notification of using a qualified installation shopIf changes are made to the heat pump's refrigerant circuit and it contains fluorinated greenhouse gases, connecting the circuit requires a refrigerant qualification issued by Tukes. As a sales company, we must ensure that the refrigeration circuit is connected by a qualified installation company or installer. You can easily find a qualified installer in your area, for example, in
Tukes' register of operators . Select a town from the list and click search.
Information and submission of the F gas formAfter ordering the heat pump, fill in all the information on the attached F-gas form and save it as an e-mail attachment. Enter the order number you received from the Karkkainen.com online store in the subject field of the email. Send a PDF file filled with the correct information by e-mail to tilauskasitettely@karkkainen.com. After receiving the email, your order will be processed and you can follow the delivery of the cargo as usual.
Features of the heat pump- Installation of split-type air-to-water heat pumps requires an F gas permit, R410 refrigerant
- Smartphone control, available as an accessory, can be connected as part of a smart home system
- Maximum flow water temperature 60 °C
- High heating and cooling capacity, even at very low outside temperatures
- Works with the compressor at full capacity without additional heating even at a temperature of -20 °C and produces heat down to -28 °C
- Works in cooling mode when the outside temperature is only 10 °C
- The internal magnetic filter facilitates installation
- Suitable as an independent heating system, or alongside an existing system
- The compressor has a 5-year warranty
Dimensioning the air-to-water heat pumpPanasonic Aquarea air-to-water heat pumps are suitable as a heat source for water-circulating radiators and floor heating objects, as well as for producing hot domestic water. Dimensioning the right size/power class of the heating system can be done, for example, according to the peak power demand (W/m2) for heating during severe frosts.
The maximum surface area to be heated in relation to the heating power of the heat pump
- Heat pump heating power: 9 kW
- Surface area to be heated
- New properties (40W/m2): 230 m2
- Renovation sites (55W/m2): 160 m2
- Log houses (75W/m2): 120 m2
- In calculating the surface area, normal room height (max 2.8m) and indoor temperature (21 °C) have been used, as well as an estimate of the average design outdoor temperature in Finland.
- To ensure sufficient heating capacity, please note that your heating system always has an additional electric resistance/other back-up heating system for winter's extreme cold (below -28 °C), when the air-to-water heat pump does not produce heat. The power of the electric resistance must be at least the size of the heating peak power requirement / the power of the outdoor unit of the air-to-water heat pump. An additional resistor can be placed, for example, in a buffer charger or a hybrid charger, if the electrical resistance of the indoor unit itself is not yet high enough (usually applies to systems over 9kW).
Sufficiency of
domestic hot water according to the number of persons / volume of the hot water tank
- Capacity of the hot water tank, 2-6 people: 150L - 200L
- Capacity of the hot water storage tank, 6-10 people: 300L - 400L
- Domestic water tank capacity, 10-15 people: 500L - 750L
The buffer accumulator of the heat distribution network balances the operation of the heat pump, it makes the operating periods of the compressor long enough and helps the heat pump to work as planned. It is especially useful when heat is produced in a water-circulating radiator network, where the amount of water is typically smaller than, for example, in water-circulating floor heating sites. We recommend the use of a buffer accumulator at least with radiators, it also helps with underfloor heating, especially in heating situations in damp rooms during the summer, when the amount of water in the floor circulation is small when the rest of the underfloor heating circuit is closed. In these situations, even the inverter compressors may run intermittently without the buffer charger connection.
- The volume of the buffer tank in relation to the power of the heating system is chosen as a rule of thumb at a minimum of 10L/1kW
- The volume of the buffer tank with a heating power of 9 kW: 100 L
* Dimensioning calculations are indicative examples in a normal situation, and we do not bear responsibility for the calculations when the use of the heating system, as well as environmental and climate conditions vary.The equipment manufacturer's dimensioning table helps in choosing the right modelheating system,
Panasonic Aquarea 9 kW : | All in One
9, 12 and 16 kW | Split Bi-Block
9, 12 and 16 kW |
| Surface area to be heated | | |
| Apartment 190-230 m²: | ✔ | ✔ |
| Apartment 150-190 m²: | ✔ | ✔ |
| Apartment 100-150 m²: | ✔ | ✔ |
| Apartment 50-100 m²: | | |
| New construction: | ✔ | ✔ |
| Summer cottage: | ✔ | ✔ |
| Characteristics | | |
| SCOP, highest value: | 5.09
A+++ / A++ | 5.09
A+++ / A++ |
| In T-cap version: | ✔ | ✔ |
| 2-area version: | | |
| In a very quiet version: | ✔ | ✔ |
| High flow water temperature (65 °C): | | ✔ |
| The service water tank is included in the delivery: | ✔ | |
| The Smart Heat Pump function is included in the delivery: | ✔ | ✔ |
| Compatible with Smart Cloud service: | ✔ | ✔ |
| Compatible with solar panels: | ✔ | ✔ |
| Compatible with the AQUAVENT FTX aggregate (3-9kW models): | ✔ | |
| Compatible with Aquarea Air radiators: | ✔ | ✔ |
Heat pump technical data- Outdoor unit: WH-UX09HE8, T-CAP, Split H generation, 3-phase, Heating or cooling, R410
- Heating power / COP (air 7 °C, water 35 °C) kW / COP: 9 / 4.84
- Heating power / COP (air 7 °C, water 55 °C) kW / COP: 9 / 2.94
- Heating power / COP (air 2 °C, water 35 °C) kW / COP: 9 / 3.59
- Heating power / COP (air 2 °C, water 55 °C) kW / COP: 9 / 2.21
- Heating power / COP (air -7 °C, water 35 °C) kW / COP: 9 / 2.85
- Heating power / COP (air -7 °C, water 55 °C) kW / COP: 9 / 2.02
- Cooling capacity / EER (air 35 °C, water 7 °C) kW / EER: 7 / 3.17
- Cooling capacity / EER (air 35 °C, water 18 °C) kW / EER: 7 / 5.19
- Seasonal energy efficiency – heating, average ηs %: 181 / 130
- climate (water 35 °C / water 55 °C) SCOP : 4.6 / 3.33
- Energy class, heating, average climate, water 35 °C / 55 °C: A+++ / A++
- Sound power, partial load Heating dB(A): 65
- Sound power, maximum load Heating / cooling dB(A): 68 / 67
- Dimensions H x W x D mm: 1,340 x 900 x 320
- Net weight kg: 108
- Refrigerant (R410) / CO2 eq. kg / T: 2.85 / 5.951
- Pipe Diameter Liquid / Gas Inches (mm): 3/8 (9.52) / 5/8 (15.88)
- Pipe length m: 3 - 30
- Height difference (inside/outside) m: 30
- Pipe length, additional gas m: 10
- Amount of additional gas g/m:
- Operating range Ambient temperature °C: -28 to 35
- Flow water temperature Heating / cooling °C: 20 - 60 / 5 - 20
Panasonic Aquarea air to water heat pumpsPanasonic manufactures high-quality air-to-water heat pumps for the heating needs of apartments and commercial premises. The wide selection of Aquarea heat pumps from 3 to 16 kW will help you find the right system for your heating or cooling needs. Cost-effective and environmentally friendly solutions are suitable for both new construction and renovation projects. In Panasonic's extensive collection, you will find a heat pump model suitable for your house, with which you can maximize comfort and the savings produced by the heat pump.
ApplicationsThe Aquarea air-to-water heat pump is a good solution for new or existing households, as well as for all kinds of properties. The systems are particularly suitable for locations with water-circulating radiators and/or water-circulating underfloor heating. The system can work independently, or it can be combined with an existing gas, wood or oil-fired, etc. heating system as needed.
Increases user comfortThe Aquarea air-to-water heat pump is able to precisely adjust the temperature thanks to reliable Panasonic inverter compressors and easy-to-use control features. Aquarea heats your home efficiently even in more demanding conditions, the heat pumps work up to -28 °C outside temperature, and they work with the compressor at full capacity without additional heating even at a temperature of -20 °C. The heat pump has a wide range of different adjustment features, which you can use to ensure complete living comfort, as well as sufficient hot domestic water.
An air-to-water heat pump takes energy from the outside airBased on advanced air-to-water heat pump technology, Aquarea is a very efficient and environmentally friendly system. It captures energy from the surrounding air and transfers it to the heating of the water and hot domestic water needed for heating the home and, if necessary, also cools your house. The system takes up to 80% of the required energy from the ambient air, even at very low temperatures.
Savings opportunitiesWith an air-to-water heat pump, it is possible to save up to more than 50% of the annual heating costs, at best even more. Its use is safe, carefree and effortless. With an air-to-water heat pump that utilizes new technology, home heating can be regulated in a much more versatile, intelligent and precise manner compared to, for example, traditional electric, wood and oil heating boilers. An air-to-water heat pump is typically more affordable in terms of acquisition costs than, for example, a geothermal heat pump.
