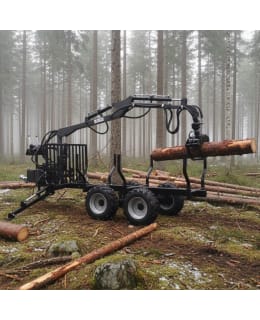

The hydraulic log truck with crane is designed for the needs of the professional. It is equipped with its own high quality hydraulics and is supplied as a complete package including a log truck, hydraulic lift with 180° swivel grab, extension boom, sturdy support legs, six banks and a powerful 6.5 HP four-stroke engine.
The log truck is most commonly used as a towed truck behind an ATV. Not for road use. Off-road/private use only. The product is delivered packed in a steel frame.
Product Information- Ammattractive log truck, high ground clearance
- .Robust, fully galvanized and corrosion resistant frame
- Hydraulic outriggers, with extra wide support
- Maximum load capacity of the trolley: 2000 kg
- The drawbar is suitable for 50 mm ball
- Adequate forklift and dedicated hydraulics
- Extension boom, 90° rotation and tilting
- 6 pcs. side booms
- Solid front boom
- Note! Engine and hydraulic oil must be purchased separately
Specifications- Engine: Ducar 6.5 HP four-stroke, manual start
- Gasoline tank capacity: 4 l
- Hydraulic oil capacity: 12 l
- Max boom length: 430 cm
- Max. Max. lifting height: 460 cm
- Max. lifting height of the support legs: 460 cm
- Max. Max. distance between the legs: 250 cm
- Lifting capacity at a distance of 2 m: 500 kg
- Lifting capacity in extreme position: 200 kg
- Tyres: 23 x 8.5-12
- Pump output: 2.7 ml/R
- Oil pump working pressure: 16 MPa
- Size of delivery: 230 × 120 × 74 cm
- Weight of delivery: 815 kg
- Warranty: 12 months
Delivery:- The product is delivered unassembled in a transport frame
