General

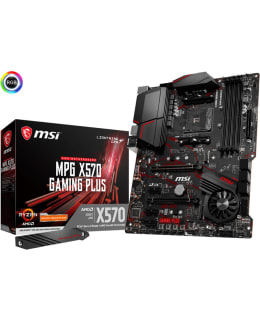

• Product type: Motherboard - ATX
• Chipset type: AMD X570
• Processor base: AM4
• Maximum number of processors: 1
• Compatible processors: Ryzen (supports 2nd and 3rd Generation Ryzen / 1st and 2nd Generation Ryzen with Radeon Vega Graphics)
Supported RAM
• Maximum size: 128 GB
• Technology: DDR4
• Bus Clock: 2400 MHz, 1866 MHz, 2133 MHz, 2666 MHz
• Supported RAM integrity check: Non-ECC, ECC
• Stored or Buffered: Unbuffered
• Features: Two-channel memory architecture, supported ECC modules operate in non-ECC mode, A-XMP support
Graphics
• Max reserved RAM size: 2 GB
Audio
• Type: HD Audio (8-channel)
• Audio chip: Realtek ALC1220
• Compatibility standards: High Definition Audio
LAN
• Network controller: Realtek RTL8111H
• Network connections: Gigabit Ethernet
Extension / Connectivity
• Expansion slots: 1 x CPU, 4 x DIMM, 1 x PCIe 4.0 x16 (PCIe 4.0 x16 mode (with 3rd Generation Ryzen CPU); PCIe 3.0 x16 mode (with 2nd Generation Ryzen CPU); PCIe 3.0 x8 mode (with Ryzen CPU with Radeon Vega Graphics / 2nd Generation Ryzen CPU with Radeon Graphics)), 1 x PCIe 4.0 x16 (x4 mode), 3 x PCIe 3.0 x1
• Memory connections: SATA connectors: 6 x SATA - RAID 0 / RAID 1 / RAID 10, SATA-600 / PCIe 3.0 connectors: 1 x M.2, PCIe 4.0 connectors: 1 x M.2
• Connections: 1 x LAN (Gigabit Ethernet), 1 x audio line-in, 1 x audio line-out, 1 x microphone, 1 x TOSLINK, 4 x USB 3.2 Gen 1, 1 x USB 3.2 Gen 2, 1 x audio line-out (center/subwoofer), 1 x audio line-out (rear), 1 x USB-C Gen2, 1 x PS/2 keyboard / mouse, 2 x USB 2.0, 1 x HDMI
• Internal connections: 4 x USB 2.0, 4 x USB 3.2 Gen 1, 1 x serial, 1 x audio
• Power connectors: 4-pin ATX12V connector, 24-pin main power connector, 8-pin ATX12V connector
Characteristics
• Hardware features: Supports AMD CrossFireX technology, MSI Mystic Light, Game Boost, MSI Audio Boost 4, MSI Core Boost, MSI PCIe Steel Slot, Extended Heatsink Design, Zero Frozr technology, MSI Frozr Heatsink Design, AMD Turbo USB 3.2 Gen 2
Change
• Included accessories: Case label, I/O back cover, M.2 Shield Frozr
• Included cables: 2 x SATA cable
• Included software: Drivers and utilities, MSI Dragon Center
• Width: 30.4 cm
• Depth: 24.3 cm
