General

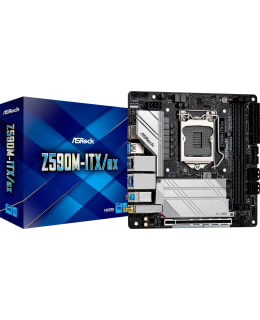

• Product type: Motherboard - mini ITX
• Chipset type: Intel Z590
• CPU base: LGA1200
• Maximum number of processors: 1
• Compatible processors: (supports 10th and 11th generation Intel Core)
Supported RAM
• Maximum size: 64 GB
• Technology: DDR4
• Bus Clock: 4600 MHz (OC), 5066 MHz (OC)
• Supported RAM integrity check: Non-ECC, ECC (works in non-ECC mode)
• Stored or Buffered: Unbuffered
• Features: Two-channel memory architecture, Intel Extreme Memory Profiles (XMP) 2.0, supported ECC modules operate in non-ECC mode
Audio
• Type: HD Audio (8-channel)
• Audio codec: Realtek ALC897
• Compatibility standards: High Definition Audio
LAN
• Network controller: Intel I219V / Dragon RTL8125BG
• Network connections: Gigabit Ethernet, 2.5 Gigabit Ethernet, 802.11a/b/g/n/ax, Bluetooth 5.2
Extension / Connectivity
• Expansion slots: 1 x CPU, 2 x DIMM 288-pin, 1 x PCIe 4.0 x16, 1 x M.2 (Key E)
• Memory connections: SATA connectors: 4 x SATA - RAID 0 / RAID 1 / RAID 10 / RAID 5, SATA-600 / PCIe 3.0 connectors: 1 x Ultra M.2, PCIe 4.0 connectors: 1 x Hyper M.2
• RAID features: Intel Rapid Storage Technology
• Connections: 1 x LAN (Gigabit Ethernet), 1 x audio line-in, 1 x audio line-out, 1 x microphone, 4 x USB 3.2 Gen 2, 1 x USB-C Gen2x2, 1 x DisplayPort, 1 x HDMI , 1 x LAN (2.5Gigabit Ethernet), 1 x USB 2.0
• Internal connections: 2 x USB 3.2 Gen 1, 1 x audio, 2 x USB 2.0
• Power connectors: 24-pin main power connector, 8-pin ATX12V connector
Characteristics
• BIOS type: AMI
• BIOS features: Multilingual BIOS, UEFI BIOS, SMBIOS 2.7 support, ACPI 6.0 support
• Hardware monitoring: CPU core temperature, chassis temperature, CPU fan speedometer, case fan speedometer, system voltage, CPU core voltage (core voltage)
• Sleep / Wake up: LAN wake up (WOL, wake on LAN)
• Hardware features: 8 Phase Power Design, ASRock Instant Flash, ASRock Internet Flash, Digi Power Design, ESD Protection, Energy Efficient Ethernet 802.3az, Preboot eXecution Environment (PXE), 8 Layer PCB, Supports Intel K-Series unlocked CPU, ASRock A-Tuning, ASRock Full Spike Protection, ASRock APP Shop, ASRock Super Alloy, High Density Glass Fabric PCB, ASRock Full HD UEFI, ASRock My Favorites in UEFI, ASRock Easy RAID Installer, Sapphire Black PCB, Dr.MOS MOSFET, Nahimic Audio Enhacer, ASRock Live Update, ASRock EZ Mode, ASRock Ultra M.2, Nichicon 12K Black Caps, ASRock Steel Slots, Premium 60A Power Choke, Intel Turbo Boost Max Technology 3.0, ASRock Full Coverage M.2 Heatsink, ASRock Hyper M.2
Change
• Included accessories: I/O back cover, 2 x ASRock WiFi 2.4/5GHz Antennas, 2 x M.2 screw
• Included cables: 2 x Serial cable ATA
• Included software: Drivers and utilities, ASRock A-Tuning, Antivirus (trial version), Google Chrome Browser, Google ChromeToolbar, ASRock Polychrome SYNC, ASRock Dragon 2.5G LAN Software
• Compatibility standards: FCC, EuP Ready, ErP Ready
• Width: 17 cm
• Depth: 17 cm
