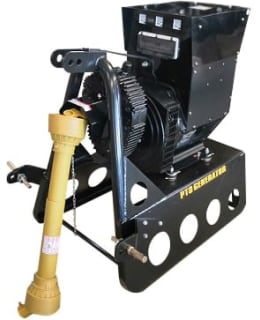

An efficient back-up power plant to be attached to the back of the tractor from which you can get both mains and power current. The possibility to ensure electricity production in case of outages or to places without electricity quickly and easily. With this three-phase generator, you can get electricity everywhere even a tractor can reach. Standard three-point attachment. Maximum output up to 75 kW. Equipped with an electronic AVR controller and a volt, amperage and frequency meter. The universal joint shaft is included in the delivery of all models.
- Light current output: 3 pcs 230 V 1 x 16 A schuko, 2 x 16 A caravan
- Power current output: 2 pcs. 1 x 400 V 63 A and 1 x 125 A 400 V
- Requires a tractor with a rotation speed of 1000 rpm
- Withdrawal rounds: 1000/min
- Generator speed 1500/min
- Recommended tractor power: over 125 HP
- Oil: SAE 80W-90
- Includes gear and rotation shaft: Yes
- Ampere, volt and frequency meters and residual current protection switch
- Electronic AVR voltage regulator
- THD: ≤ 3%
- Power factor COS φ: 0.8
- Protection class: IP23
- Package dimensions: 1240 x 840 x 1320 mm
- Weight: 500 kg
Delivery does not include oil. Delivered packed in a wooden box.
