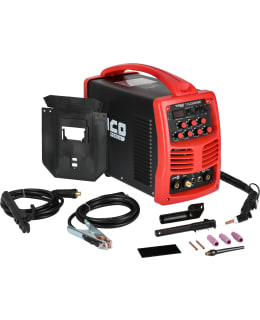

The Timco TIG250WSME is a new AC/DC pulse inverter that is a light, portable and really compact TIG welding machine. It is suitable for light industry manufacturing, maintenance and repair, agriculture and the automotive industry. The TIG250WSME is designed for high quality TIG welding. With this TIG welding machine, you can weld almost all kinds of metals, e.g. steel, stainless steel, chrome, titanium and aluminum! When the conditions do not favor TIG welding, you can always change the stick cables and do the work with a stick.
In the machine, all TIG welding properties can be adjusted, e.g. start current, pause current, stop current, aftergas, pulse frequency, 2T/4T with logic, etc.
Tig's efficient HF ignition guarantees easy ignition, both in TIG and stick welding, making welding easy even for hobbyists.
Features:- All materials can be TIG-welded, including aluminum
- LCD screen and stepless power control
- With carrying handle
- Thanks to the TIG pulse function, control of the weld metal is easier
- The HF/LIFTIG function allows ignition with or without high frequency
- Thanks to MMA, or stick welding, welding is possible with most electrodes
- In addition to the machine, you need a TIG electrode and a protective gas bottle (argon)
Technical information:- Single-phase: AC 230 V
- Rated current: 28 A
- No-load voltage: 56 V
- Current range: 20 - 250 A
- AC pulse duration: 20-80%
- Impulse duration: 10-90%
- After gas: 2-10 s
- Pulse frequency: 0.5-5 Hz
- Remote control: Yes
- Arc: High frequency
- Efficiency: 85%
- Pulse ratio: 60%
- Power factor: 0.93
- Insulation class: F
- Enclosure class: IP21
- Torch cable TIG: 4 m
- Grounding cable: 3 m
- Material thickness: 10 mm
- Size: 480 x 240 x 400 mm
- Weight: 17 kg
- Standards: EN60974-1/3/10
The package contains:- TIG cable 4 m
- 3 m long stick welding and ground cable
- Brush
