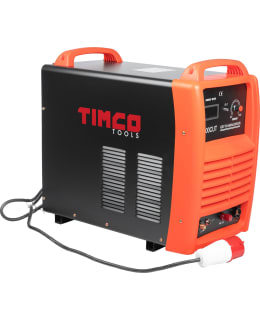

Timco's PI100CUT includes IGBT technology, which ensures cutting even thick metal. Because the current obtained from the inverter is used, the dimensions and weight of the main transformer have been reduced considerably and the efficiency has increased by 30%. Cuts all conductive materials, such as steel, grid, galvanized steel, aluminum, copper and brass. A comprehensive package, you also only need an air compressor.
The cutter has the following features:- Digital display with LED lights
- Stepless current control
- Carrying handle
- Cuts a maximum of 35 mm thick metal
- Optimal for 1-25 mm thickness
- Stabilization
- Reliability
- Levity
- Energy-saving and noiseless
- High cutting speed
- Cuts evenly and does not need to be sanded
- Pilot arc
Technical information:- Voltage: Three-phase current 400 V +- 15%
- Rated input current: 15.0 kVA
- no-load voltage: 270 V
- Rated output current: 100 A
- Rated output voltage: 120V
- Load: 60%
- Burner inner diameter: 1.2 mm
- Air compressor pressure: 8.0 kg
- Airflow: 220 l/min
- Weight: 36 kg
- Dimensions: 560 x 370 x 460 mm
The package contains:- 4 m long plasma torch
- 3 m long ground cable
Note! A plasma cutter requires a compressor to operate.
