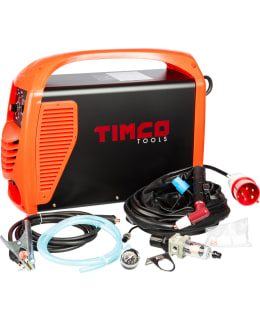

The Timco NP60CUT is manufactured with the most advanced inverter technology. 50 Hz / 60 Hz frequency is converted to high frequency by MOSFET technology (frequency is more than 100 kHz), reduced voltage and rectified current, converted power supply produces high-power DC welding current by pulse modulation technology. Because the current from the inverter is used, the dimensions and weight of the main transformer have been reduced considerably and the efficiency has increased by 30%.
Cuts all conductive materials such as steel, grid, galvanized steel, aluminum, copper and brass. The package contains a 4 m long plasma torch and a 3 m long ground cable. You also only need an air compressor.
The cutter has the following features:- Digital display with LED lights
- Stepless current control
- Carrying handle
- Cuts a maximum of 20 mm thick metal
- Optimal for 1-12 mm thickness
- Stabilization
- Reliability
- Levity
- Energy-saving and noiseless
- High cutting speed
- Cuts evenly and does not need to be sanded
- With contact ignition (HF)
Technical information:- Nominal voltage three-phase alternating current, 400 V +-15%
- Rated input current: 7.8 kVA
- no-load voltage: 270 V
- Rated output current: 80 A
- Nominal output voltage: 92 V
- Load: 60%
- Burner inner diameter. 1.2 mm
- Air compressor pressure: 6.0 kg
- Airflow: 200 l/min
- Weight: 17 kg
- Dimensions: 520 x 220 x 400 mm
