The Timcon MMA200PTMIG combination welding machine is an easy-to-use plasma cutter, MIG, TIG and stick welder featuring IGBT technology, which is perfectly suited to hobby use. For professional use, we recommend a separate MIG welder such as the iT315MIG; for frequent TIG welding or when welding aluminium, the TIG250WSME; and for plasma cutting, the Pi160CUT model.
The MMA200PTMIG is extremely compact, very lightweight and yet powerful. The welder is easy to carry around and move as the job progresses. An air compressor must be connected to the machine for plasma cutting.
Features:- A complete package for three different welding methods (TIG, stick and MIG with cored wire) as well as plasma cutting
- Stepless current control
- Hot start – This function automatically increases the welding current at the start, preventing the electrode from sticking and ensuring the best possible weld from the very beginning. After ignition, the machine automatically returns to the previously set voltage.
- Anti-stick – this function prevents the electrode from overheating and sticking to the material being welded by automatically switching off the welding current.
- Arc Force – this function adjusts the arc to suit the material and weld, improving the weld’s durability and quality.
- Lift TIG
- Automatic MIG wire speed based on feed current
Technical specifications:- Single-phase alternating current
- Frequency: 50/60 Hz
- MIG current: 40 – 200 A
- Stick welding current: 20–200 A
- TIG current: 15 – 200 A
- Plasma current: 20–40 A
- No-load voltage: 60 V
- Electrode thickness: 1.6–4 mm
- Welding wire thickness: 0.8–1 mm; 0.6 mm also available with wire feeder (must be ordered separately: 103251300)
- TIG electrode thickness: 1.6 – 3.2 mm
- TIG pulse function: No
- Maximum cutting thickness: ≤12 mm
- Insulation class: F
- Enclosure rating: IP21
- Unit dimensions: 48 x 24 x 41.5 cm
- Unit weight: only 12.5 kg
- Package dimensions: 67 x 45 x 36 cm
- Package weight: 24 kg

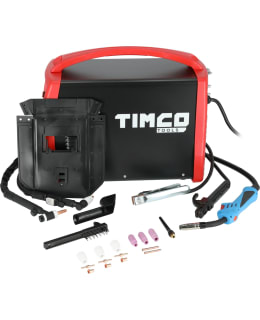

Package contents:- Plasma, stick, MIG, TIG and ground cables
- Brush
Accessories and consumables:- 6438014251752 Timco MIG welding wire 0.8 mm 5 kg 102298244
- 6438014349213 Timco 0.6/0.8 wire feed roller 103251300
