Timco MMA140TMIG is an easy-to-use filler wire MIG, TIG and stick welding device equipped with IGBT technology, which is perfectly suitable for hobby use. For professional use, we recommend a shielded gas MIG welding device such as the iT315MIG and, when welding a lot with TIG or aluminum, the TIG250WSME.
The welding device is very compact, very light and yet efficient. The welding device is easy to carry and move as the work progresses. The device has a 1kg core-filled welding wire roll ready in place, so you can start working right away.
Features:- The perfect package for versatile welding
- Stepless current control
- Hot start - This function automatically increases the welding current at the start, so that the electrode does not stick and the welding seam is as good as possible from the beginning. After ignition, the device automatically returns to the previously set voltage.
Anti stick - this function prevents the electrode from overheating and sticking to the material to be welded by automatically switching off the welding current.
Arc Force - this function adjusts the arc according to the material and the welding seam, improving the durability and condition of the seam.
Technical information:- Single phase alternating current
- Frequency: 50/60 Hz
- MIG output: 30 – 140 A
- TIG output: 10 – 140 A
- Stick welding output: 20 – 140 A
- Nominal supply voltage: 15.5 – 21 V
- Efficiency: 85%
- The thickness of the stick is 1.6-3.2 mm
- Welding wire thickness: 0.8-1 mm
- Wire speed: 2 – 13 m/min
- Thread roll diameter: 150 mm
- Insulation class: F
- Enclosure class: IP21
- Weighs only 5.7 kg
- Device dimensions: 32.5 x 14.5 x 27.5 cm
- Package dimensions: 43 x 23 x 30 cm

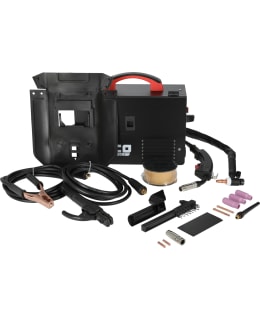

The package contains:- Welding, stick-tig. and ground cable
- Brush
- The TIG torch is included in the delivery, but can also be purchased as an accessory
Optionally available: 6438014288925 Timco MMA140TMIG Tig torch
