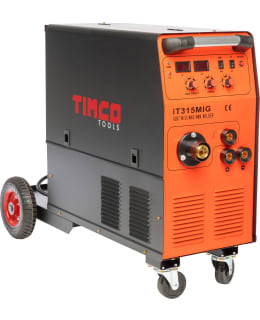

The Timco iT315MIG is an easy-to-use MIG welding device that is suitable for both hobby and professional use. Especially recommended for active people who want the best quality.
CO2-protected welding devices have advanced inverter technology. The device is equipped with an electronic reactor circuit that can accurately control short electrical transition phases and mixing phases and guarantees excellent welding properties.
Features:- The machine can hold up to 15 kg of yarn
- Wire thickness 0.8-1.0 mm, with accessory wheel 1.2 mm
- Stepless wire feed
- Stepless current control
- Possibility of welding without gas
- MIG, MAG and stick
- Equipped with a durable fan
- Easy to move thanks to the wheels
Technical information:- three-phase 400 V ±15%
- Frequency: 50/60 Hz
- Nominal current: 18A
- Output current MIG: 50-315 A
- Output current STICK: 40-315 A
- Output voltage: 16.5-29.8 V
- Load capacity: 60% 315 A
- Load capacity: 100% 244 A
- Feed speed: 2.5-13 m/min
- Post feed: 2-3 s
- Thread roll diameter: Max. 300 mm
- Wire diameter: 0.8-1.0 mm, with accessory wheel 1.2 mm
- Insulation class: F
- Enclosure class: IP21S
- Weight: 45 kg
- Dimensions: 870 x 410 x 630 mm
- Storage temperature: 10–40 degrees
The package contains:- MIG 24KD torch
- 4 m burner cable
- 3 m stick and ground cable
- Brush
- Does not include meter!
