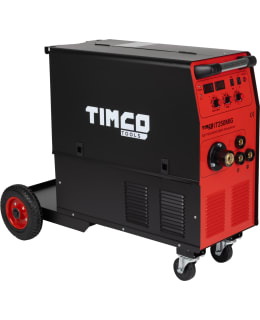

The Timcon iT250MIG is an easy-to-use MIG welding machine suitable for both hobbyists and professionals. It offers one of the best value-for-money ratios amongst arc-powered machines.
CO₂-shielded welding machines feature advanced inverter technology. The machine is fitted with an electronic reactor circuit that can precisely control short electrical transition phases and mixing phases, ensuring excellent welding performance.
Features:- Holds up to 15 kg of wire
- Wire diameter: 0.8–1.0 mm, up to 1.2 mm with an optional spool
- Stepless wire feed
- Stepless current control
- Gasless welding option
- MIG, MAG and stick welding
- Easy to move thanks to the wheels
- Operates with a 16 A fuse
Technical specifications:- Single-phase: 230 V ±15 % (light current)
- Frequency: 50/60 Hz
- Output current (MIG): 50–250 A
- Output current (STICK): 20–250 A
- Output voltage: 16.5–26.5 V
- Duty cycle: 60 %
- Feeding speed: 2.5–13 m/min
- Post-feed: 2–3 s
- Wire reel diameter: Max. 300 mm
- Standard wire diameter: 0.8–1.0 mm; 1.2 mm with optional reel
- Power cable: 2.2 m
- Insulation class: F
- Enclosure class: IP21S
- Weight: 40 kg
- Dimensions: 870 x 410 x 630 mm
- Storage temperature: 10–40 degrees
Package contents: - MIG 24KD torch (cable length approx. 3.8 metres)
- 3-metre earth cable
- Does not include a meter!
Optional extras and accessories:- 6438014186986 Timco 24 KD MIG welding torch 101879058
- 6438014251769 Timco welding wire 0.8 mm 15 kg 102298248
- 6438014257839 Timco MIG welding wire 1.0 mm 15 kg 102298246
- 6438014251745 Timco MIG welding wire 0.6 mm 5 kg 102298242
- 6438014251752 Timco MIG welding wire 0.8 mm 5kg 102298244
- 6438014188454 Timco MIG-250IT/3151T wire feeder 101879068
