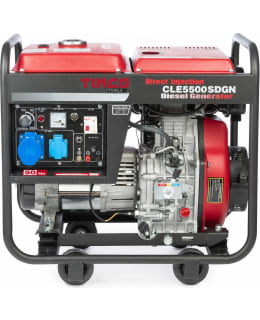

Timco CLE5500SDGN is a versatile 1-phase aggregate for summer cottages and construction sites.
The 1-cylinder, diesel engine produces electricity at a speed of 3000 revolutions per minute and produces a maximum power of about 5 kW. The unit has 3 outputs: one light current output (230 V), one "caravan plug" output (230 V) and a 12 V (8.3 A) output.
The 91 kg generator can be moved easily thanks to the wheels.
The fuel tank holds about 11 liters of diesel, which will run this generator all night long at once.
Equipping:- Battery-operated electric start makes use easier
- With big tires
- Voltmeter
- Oil warning light
- Residual current protection
- Fuel gauge
- With the highest quality NSK bearings
- Equipped with a high-quality AVR controller THD <10%
Technical information:- Fuel: Diesel
- Fuel consumption: at 100% load 2.0 l/h | at 75% load 1.6 l/h | 1.1 l/h at 50% load
- Operating time: 5.5h at 100% load | 7.5 h at 75% load | 10h at 50% load
- Phase count: 1-phase
- Continuous current: 19.6 A
- Maximum power: 5 kW
- Continuous power: 4.5 kW
- Engine type: 186FAE 418cc 6.3kW
- Fuel tank: about 11 l
- 1 x 230 V "caravan" output, maximum power 19.6 A and 4.5 kW
- 1 x 230 V light current output, maximum power 16 A and 3.68 kW
- 1 x 12V 8.3A output
- Location of the ATS plug
- Electric start (30 Ah battery)
- Oil volume: 1.65 l
- Recommended oil: 10W-30
- Noise level 85 dB(A) (7 m)
- Protection class: IP 23
- Dry weight: 91 kg
- Dimensions: 720 x 480 x 585 mm
- Warranty: 12 months
Note! The unit is not intended to be enclosed or installed in a small closed space, such as a cabinet or canopy cart, make sure that the machine always gets fresh air for both cooling and fuel combustion.
Delivered without engine oil! (10W-30)
