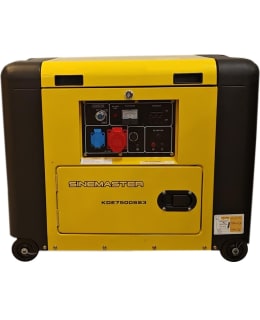

The Sinemaster KDE7500SS3 provides power for power outages and where electricity is scarce.
The 1-cylinder, diesel engine generates electricity at 3600 rpm and produces a maximum power output of around 7 kW. The aggregate has 3 outputs: one luminous flux output (230 V), one power output (400 V) and a 12 V (8.3 A) output. Equipped with ATS plug. The 170 kg generator can be moved easily thanks to the wheels.
The aggregate is packed inside a silencing enclosure with a silencer at one end. The fuel tank holds about 16 litres of diesel or fuel oil, which will keep this generator running all night long.
Equipment:- Silent model
- Silent - Battery operated electric starter for easy starting
- Voltmeter
- Oil warning light
- Fuel gauge
- Equipped with AVR control
- Equipped with ATS plug
Technical specifications- Fuel: Diesel
- Fuel consumption: 2.3 l/h at 100% load
- Operating time: 100% load 7 h
- Gear ratio: 1-phase and 3-phase
- Maximum rated power: 7 kW
- Calculated continuous power: 6,5 kW
- Engine type: 192FD 498cc
- Fuel tank: approx. 16 l
- AVR controller: THD ≤ 20%
- 1 x 400 V power output
- 1 x 230 V light current output
- 1 x 12 V (8.3 A) output
- Electric start (20 Ah battery)
- Centralised lifting point: No, lifting by handles
- ATS possibility: Yes
- Oil capacity: 1,65 l
- Recommended oil: 10W-30
- Noise level: 71 dB(A)(7 m)
- Dry weight: 170 kg
- Dimensions: 945 x 550 x 750 mm
- Luminous flux output power is 1/3 of the maximum power output of the flux
- Warranty: 12 months
Accessories: Sinemaster ATS light starter unit
In the event of a power failure in a controlled network, the ATS senses the voltage drop and sends a signal to the generator, which starts the power supply to the interrupted power system within a few seconds. The ATS monitors throughout the outage and once it has verified that the grid voltage has returned to an acceptable level, the ATS transfers the electrical load back to the grid and shuts down the aggregator.
