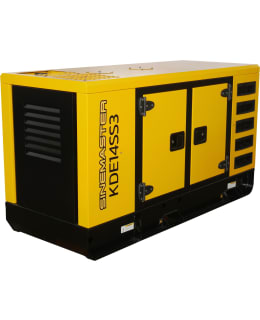

High quality power generator suitable for professional use, hospitals and public buildings. Compliant with the latest emission standards, the intelligent, electrically-started aggregate is reliable and long-lasting. It also features an hour meter, an oil level gauge and a large fuel tank. The engine has one of the longest life on the market thanks to its low revs of 1500 rpm. The engine life is up to four times longer compared to 3000 rpm rotating alternators.
The alternator is equipped with the latest and smartest SmartGen 4020N control panel on the market and a large 45 Ah battery. Soundproofed steel housing with service hatches. High quality AVR controller with THD < 3%, i.e. sine wave level.
Features:- Safe power for sensitive electronics
- Sinemaster power generators run even larger electrical appliances with cleaner, safer and more stable power
- ./li>
- Easy maintenance and installation
- A quick service hatch ensures speed and an LED display provides full diagnostic functionality for the unit
Specifications:- Engine: Yangdong EURO 5 1809cc Water-cooled, four-cylinder direct injection diesel
- Number of cylinders: 4
- RPM: 1500 rpm
- Insertion: 80 x 90 (mm)
- Injection ratio: 18±0.5:1
- Voltage: 230 V / 400 V
- Frequency: 50 Hz
- Control Panel: Digital Display
- Power Continuous: 10 kW / 12.5 kVA
- Power Max.Max. power: 11 kW / 14 kVA
- Total power @ 1500 rpm: 14 kW
- Outputs 32 A 400 V 3-phase: 1 CEE
- Outputs 16 A 230 V 1-phase: 1 pc caravan plug CEE
- Vinocity: 400 V 2/3 power, 230 V 1/3 power
- Atcurrent continuous: 18.1 A
- Power factor COS φ: 0.8
- Equipped with high quality AVR regulator, THD: 1.92%
- Electric start: 12 V
- Opening switch: Yes
- Emergency stop switch: Yes
- Circuit breaker: 4P 20 A
- Automatic fuses: Yes
- Voltage meter: Yes
- Fuel tank capacity: 25 l
- Fuel pump: mechanical in-line pump
- Run time per tankful: 8 h / 100%
- Battery: CAMEL Group 45Ah
- Motor oil capacity: 5.5 l
- Noise level (7 m): 67 dB
- Protection class: IP23
- Fuel consumption: ≤ 250 g/kW.h
- Packing dimensions (W x L x H): 177 x 76 x 100 cm
- Generator dimensions (W x L x H): 175 x 72 x 98 cm
- Centred lifting point for easy transport
- Weight: 580 kg
Accessories: SINEMASTER ATS 40A Automatic Starting Unit 6438014342412
In the event of a power outage on a controlled network, the ATS senses the voltage drop and sends a signal to the generator, which starts powering the outage within seconds. The ATS monitors throughout the outage and once it has verified that the grid voltage has returned to an acceptable level, the ATS transfers the electrical load back to the grid and shuts down the aggregator. In normal standby mode, 12V power is supplied from the mains via the ATS to the generator starter battery to ensure that it is fully charged.
