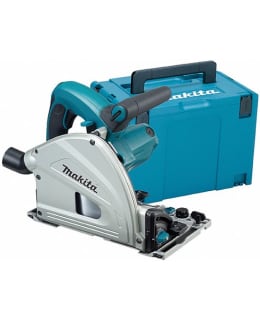

Reciprocating circular saw for precise straight cuts. Very handy for e.g. furniture installation and terrace construction. Recommended for use with a guide rail. Motor power 1300W and sawing width 56mm.
A 1500mm guide rail is supplied.Benefits:- The 2mm sawing function ensures a clean sawing result.
- Sawing angle adjustment from -1 to +48°.
- The cutting line is always the same regardless of the bevel angle.
- Edge distance only 18 mm; when sawing e.g.
- The saw can be locked in the groove of the optional guide rail, so that it remains securely in place when sawing.
Specifications:- Power (P)1300W
- RPM (min-1)2000-5800
- Max. sawing depth 90°56mm
- Max. sawing depth 48°38mm
- Max. Max. saw depth 45° tilt 40mm
- Max. Tilt left/right 1/48°
- Blade diameter 165mm
- Blade diameter 20mm
- Cable length 2.5m
- Sound power level (Lwa)81dB(A)
- Sound pressure level (LpA)92dB(A)
- Noise tolerance (K-factor)3dB(A)
- Vibration value ≦2,5m/s²
- Vibration tolerance (K-factor)1.5m/s²
- Weight without cable (EPTA)4.4kg
- Dimensions (PxLxK):341 x 225 x 250mm
Standard accessories:- Cuusiokolo wrench 5mm 783203-8
- Makpac plastic bag nr. 4821552-6
- Makpac inner mould (4) 837945-7
- Round saw blade HM 165mm, Z-48 B-09298
- 1500mm guide rail
