Great power with 4 gearsPowerful and versatile, 4 gears ensure the right transmission for every job. The best clutch concept ever. Whether it's woodworking or metalworking, the TDC is extremely robust and offers high load capacity and long service life thanks to the brushless EC-TEC engine. A wide range of different change-over heads and suitable accessories make the QUADRIVE model a superior screwdriver for a wide variety of applications. How does it prevent the dangerous twisting of the wrist in the event of sudden jamming of the tool? The intelligent KickbackStop minimises the risk of this happening. Try it: the best Festool screwdriver ever!
- High power for clamping thick screws and drilling large holes, high speed for clamping thin screws and drilling small holes
- Exceptionally efficient: thanks to the ultra-powerful, brushless and long-life EC-TEC motor
- Durable: with a violently strong 4-speed metal gearbox. Absolutely safe purchase thanks to the comprehensive Festool Service guarantee
- The 4 gears of the QUADRIVE model offer the right transmission for every work situation: 50 Nm torque in 1st gear for efficient screwdriving and 3.600 rpm for precise drilling
- Versatile: FastFix interface allows quick, tool-free switching between drilling, screwing, angle drilling and angle screwing operations
- Depth response and off-center clamping also allow for adjustable depth and near-edge screwing
- Removable battery system: Suitable for high-power jobs, the 4.0 Ah Li-HighPower Compact battery offers the optimal combination of high performance, compact size and light weight. When top performance is required, the 5.0 Ah battery is the right choice for particularly heavy-duty drilling and screwing jobs. Comprehensive warranty: the comprehensive Festool Service warranty naturally also applies to the battery
- Reliable: The QUADRIVE is packed in a Systainer³ case and can be conveniently transported from the workshop to the construction site in a bott-truck rack
Main features
FastFix
Makes it easy to change tools when milling, sawing, planing, sanding, drilling and screwing.
Torque solution
Ingenious technology ensures optimum torque for every material when screwing.
Electronics
Adjustable speed, which can be selected according to the material being worked on.
KickbackStop
The electronic KickbackStop prevents dangerous twisting of the wrist in the event of sudden jamming of the drill bit, thus ensuring greater work safety.
EC-TEC motor
The brushless EC-TEC motor concept guarantees incredibly powerful performance with extremely low energy consumption.
Specifications- Battery voltage (nominal voltage): 18 V
- Speeds: 4
- No load speed 1./2. gear: 0 - 500/0 - 800 min-¹
- Unloaded rpm 3rd/4th gear: 0 - 500/0 - 800 min-¹
- Unloaded rpm 3rd/4th gear: 4. gear: 0 - 2350/0 - 3600 min-¹
- Drilling hole Ø wood/steel: 70/13 mm
- Torque adjustment 1st/2nd gear: 2 - 20/2 - 20 Nm
- Max. Max. torque wood/steel: 50/75 Nm
- Drill hole opening: 1.5 - 13 mm
- Product weight without accessories: 1.20 kg
- Transport weight with accessories: 4.22 kg
- Power: rechargeable battery

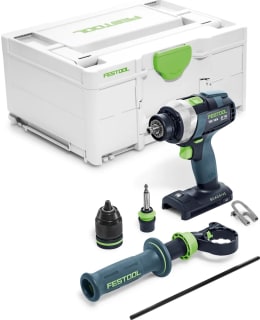

Standard equipment:- Hitch WH-CE CENTROTEC
- Magnetic blade holder BH 60 CE-Imp
- Quick-release tool holderCC 13-1/2-MMFP
- Hitch KC 13-1/2-MMFP
- Lower handleAHS-43/230
- PZ 2 screw head
- Belt clip
- Systainer³ SYS3 M 187
