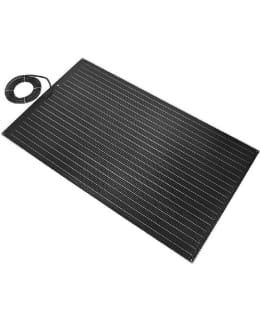

Top-quality flexible panel equipped with PERC cells for boats, RVs, cabins, etc. The panel withstands all weather conditions and is also resistant to sea and salt water. Suitable for installation on the deck of a boat because it can withstand walking on it and the Dupont-ETFE surface reduces the risk of slipping. Stainless steel (304) eyelets in the corners for fastening. The junction box is IP67, so it is completely waterproof.
- Size: 1560 x 700 x 4 mm
- Cell: PERC 158.75 x 158.75 mm mono solar cell
- Weight: 5.8 kg
- Tolerance: 0-3%
- Rated peak power: 200 W
- Minimum age: 18 years
- Ipm: 11.11 A
- Voc: 21.6V
- Isc: 11.99A
- Structure: Dupot ETFE, EVA+solar cell+ EVA, base plate + EVA+TPT+ Dupont ETFE
- Power temperature coefficient: -0.24% /°C
- Voltage temperature coefficient: -0.25%/°C
- Current temperature coefficient: -0.06%/°C
- NOCT: 4±2
- Maximum system voltage: 1000V DC
- 100% sea and salt water resistant
- Flexibility 3% ~ 5%
- Cable: 2 x 1 m cable with MC4 connectors
- IP67 junction box cable outlet, sealed and completely waterproof
- 304 stainless steel loop for easy attachment and installation
- The DuPont ETFE surface reduces the risk of slipping when wet
- PERC solar cells with the highest performance class for maximum output
- Rounded corners prevent the risk of injury
- 100% maintenance-free, self-cleaning surface
- Maximum permissible curvature: 3% (3 cm / 1 m)
