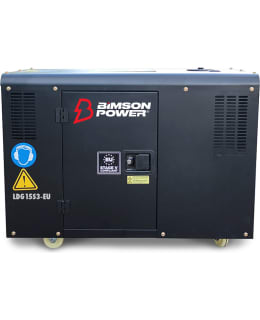

Bimson Power 13000W three-stage diesel aggregate with ATS capability
Our new and improved 3-phase aggregate, the Warrior LDG15S3, is now equipped with a larger motor that delivers up to 12,000 watts of continuous power. This aggregate is equipped with ATS capability. By purchasing the ATS module as an option, it can be connected directly to your home's electrical system. In the event of a power outage, the ATS module automatically switches on the backup power and also shuts itself off when the power is restored.
Thanks to its large 35 litre fuel tank, this aggregate has a run time of up to 20 hours at 50% load.
The Warrior has an Automatic Voltage Regulator (AVR) that carefully monitors the power, protects the unit from voltage fluctuations and ensures stable operation. This aggregate is an ideal choice for a variety of applications, including household power supply, construction sites, restaurants and industrial use.
This aggregate is encased in a noise-absorbing housing and coated with a powder-coated black finish for wear resistance. The robust construction adds to the reliability.
Comfort is enhanced by features such as remote start/stop and a clear multi-function display where you can easily monitor the current power, Hz, voltage and hours of use.
The aggregate is equipped with a 400V three-phase standard socket and a single-phase 230V socket.
Please note: If you use single-phase equipment with a three-phase aggregate, you will only use 30-35% of the aggregate's power because your connected equipment will only use one phase. Therefore, it is better to use a single-phase aggregate to power single-phase devices.
Main features:DIESEL V-Twin ENGINE - 3-phase 1064cc
POWER START - Easy key start
ATS ready - Can be connected to the mains via the ATS module (sold separately)
.br />HIGH POWER - 13,000 watts peak power / 12,000 watts continuous power
LONG RUN TIME - Up to 20 hours run time at 50% load
Multifunction display - Display that shows power, Hz:n, voltage as well as hours of use
Specifications:- kVa Output 15kVa
- Power Peak: 13000 watts
- Continuous Power: 12000 watts
- Output: 1 x 32A 3 phase 415V, 1 x 32A 230V, 1 x 16A 230V Schuko
- Engine: 1064cc Diesel V-Twin
- Starting: Electric
- Fuel Type: Diesel
- Fuel Tank Capacity: 35 litres
- Fuel Gauge: Yes
- Oil Capacity: 3 litres
- Recommended engine oil: Champion Tekma PowerX 10W30
- Oil pressure gauge: Yes
- Operating time (hours): 35 h @ 25% load
- Stages: 3-stage
- Noise level @ 7m: 75 dBA
- RPM: 3000 RPM
- Power factor: 0.80
- Overcurrent Protection : Yes
- Intelligauge Display : Yes
- Electrical : Yes
- Voltage Meter: Yes
- Automatic Voltage Regulator AVR : Yes
- Tyres : Yes
- Fuel consumption @ 25% load : 1.Fuel consumption @ 50% load: 1.75 litres/h
- Dimensions: 112 x 72.5 x 86 cm
- Weight: 260 kg
- Certificates: CE, ISO9001-2000, GS, TUV
- Warranty: 2 years
.
