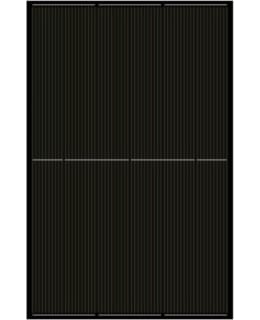

The YLM-J 3.0 Pro 400W solar panel is manufactured by BloombergNEF Tier-1 rated Yingli Solar.
The YLM 3.0 solar panels use high-efficiency p-type single-crystal PERC cell technology. The uncompromising quality and reliability make the panels highly suitable for demanding environments.
- The glass backing plate construction and the specially reinforced frame ensure high mechanical resistance.
- IEC standard resistance to dust, sand, acidic conditions, etc.
- Multi-busbar design effectively reduces micro-cracks and power losses
- Large cell size ensures high thermal and overall efficiency
- Half-cell design combined with PERC technology allows high yield even at low radiant power levels
Technical specifications:- Power: 400 Wp
- Power tolerance: 5%.
- Open circuit voltage (Voc): 37,06V
- System voltage (max): 1500 V
- Maximum power point voltage (Vmpp): 30,65 V
- Maximum power point current (Impp): 13,06 A
- Short-circuit current (Isc): 13,78 A
- Efficiency: 20,48 %
- Sensor type: half cut monocrystal (108 cells)
- Dimensions: 1722 x 1134 x 30 mm
- Weight: 21,5 kg
- Surface: 3,2 mm tempered glass
- Body: Anodised aluminium black
- Connecting cable: 1m with MC4 connectors
- Junction box: IP67 (3 bypass diodes)
- Warranty: 12 years product warranty / 25 years output warranty
