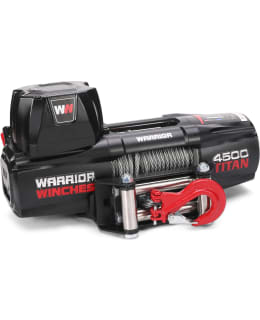

With our new Titan range, we are setting a new standard in ATV/UTV/QUAD and trailer winching. Ready for the most demanding conditions with specially designed braking technology, a 3-stage planetary gearbox and quiet, smooth operation. Here you get a fully metal-cased winch with an improved IP rating (IP67), a new stylish design and the latest rechargeable wireless remote control.
Designed for extreme off-roadenthusiasts and heavy-duty use, the Titan series combines advanced engineering with top-of-the-range materials to ensure reliable performance exactly when it’s needed most.
Whether it’s crossing rocky terrain, ploughing through deep mud, rescuing heavy vehicles or launching and retrieving boats, these winches deliver the speed, power and control needed to overcome any challenge.
The range includes models in 12V and 24V versions, available with either a steel cable or Armortek Extreme rope, the most durable synthetic rope on the market.
All winches in the range come with a 5-year warranty, guaranteeing you peace of mind and confidence for years to come!
Technical specifications
- Dimensions: 393 x 127 x 195 mm
- Warranty: 5 years
- Motor: 12V electric: IN: 3.4hk / 2.5 kW | UT: 1.4hk / 1.1kW
- Engagement: Manual
- Weight, kg: 15.3
- Brake type: Mechanical spring
- Mounting pattern: 124 x 76.2 mm
- Certification: CE certification
- Gear ratio: 166:1
- Maximum load: 2041 kg
- Cable/Rope - Diameter x Length: Steel wire rope 6 mm x 14.5 m
- Drum size – Diameter x Length: 50 x 138 mm
