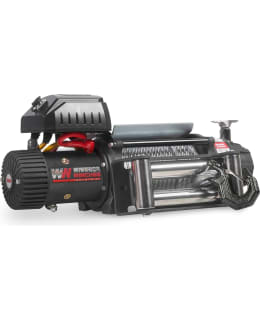

The T1000 series is Warrior Winches’ most extreme electric winch. It was originally developed as a highly advanced prototype for military applications, where the ability to perform in all climates, environments and conditions is of the utmost importance.
Following successful field trials by various armed forces and significant interest in the series at the Defence and Security Equipment International Expo, it was decided to expand the marketing of the T1000 series and make it available for general use. However, it is the very same winch, completely unchanged, that we are offering on the market today.
The T1000 is available in both 12V and 24V versions, with either a steel wire rope or the more popular Armortek Extreme version. The range includes winches with capacities ranging from 14,500 lbs (6,577 kg) right up to a massive 22,000 lbs (10 tonnes!), and, as is usual with Warrior Winches, this figure represents what the winch can actually pull over the long term – not just in a matter of seconds.
The T1000 is suitable for all purposes, as it can withstand anything. Whether for industrial, commercial or military use, or for individuals who simply want the very best, the T1000 is more than just a possible solution – it is the solution. True to its name, the T1000 is undoubtedly one of the most advanced machines on the market and is truly a top-of-the-range Warrior.
This winch comes with a Trident 2.4 GHz wireless remote control.
Outstanding features
- Military-grade IP68 rating for the winch and control unit
- A revolutionary external brake designed to prevent the build-up of critical temperatures in the drum, which could otherwise damage the synthetic rope
- The external brake has been developed to lower and hold the load more effectively than standard brakes
- Special lithium lubrication ensures the winch operates reliably in all climatic conditions
- A hardened three-stage planetary gearbox offers reliability and efficiency
- A powder-coated finish resistant to chemicals and corrosion
- Trident 2.4G wireless remote control
- Aluminium cable guide as standard
- Stainless steel fasteners
Technical specifications
- Dimensions: 612 x 160 x 259 mm
- Warranty: 3 years
- Engine: IN: 7.2hk / 5.4 kW | UT: 3.6hk / 2.7 kW
- Clutch: Manual
- Weight, kg: 33
- Brake type: External brake
- Mounting pattern: 254 mm × 114.3 mm
- Certification: CE certification
- Gear ratio: 228:1
- Maximum load: 6,577 kg
- Cable/Rope – Dia x L: Steel wire rope 25 m × 11 mm
- Drum size – Diameter × Length: 63 × 217 mm
