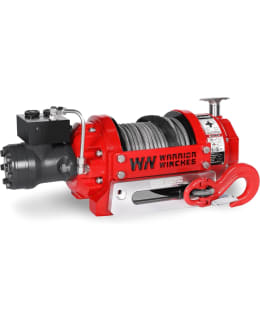

RV Series Hydraulic Winches: Built for power, designed for reliability
When the job demands real power and unwavering reliability, the RV Series hydraulic winches rise to the challenge. Designed to the stringent SAE J-706 standard, these winches are built for heavy-duty industrial and professional use, where failure is not an option.
With its impressive 10:1 drum-to-wire ratio, the RV series maximises efficiency and ensures high, consistent and powerful pulling force every time. Safety is at the heart of our design: the wire rope features a 2:1 safety factor and the wire rope attachment system is rated at 2.5 times the load capacity, ensuring the utmost safety in demanding conditions.
The hydraulic, full-load-holding brake provides precise control and stability, keeping operations safe and smooth whatever the challenge.
The RV series is available with capacities ranging from 10,000 to 18,000 pounds (approx. 4,500–8,100 kg), making it robust enough for heavier and more demanding jobs – from challenging industrial sites to high-risk commercial projects.
If you’re looking for a hydraulic winch that doesn’t just meet industry standards but exceeds them, the RV series is the only choice.
Features:
- Rated pulling capacity: 3,628 kg
- Motor type: Hydraulic
- Clutch: Manual
- Gear ratio: 17.6:1
- Gearbox system: Planetary gearbox
- Braking system: Wet-type hydraulic brake
- Drum size (diameter x length): 102 x 169 mm
- Fairleads: Not available / Not applicable
- Cable material: Synthetic rope
- Cable size (diameter x length): 9 mm x 20 m
- Fairlead: Hawse-type
- Mounting pattern: 8.74 × 4.5 inches / 8.74 × 6.5 (8-M10)
- Dimensions (LxWxH): 558 x 237 x 241 mm
- Weight: approx. 38.5 kg
- Maximum flow rate: approx. 60 l/min
- Maximum pressure: 12.0 bar
- IP rating (water resistance): IP67
- Certification: CE, SAEJ-706
