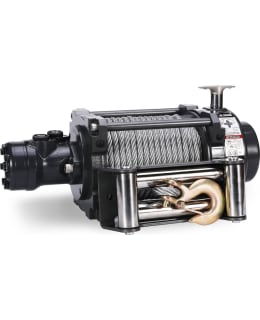

The NH series is our entry-level range amongst our three hydraulic series. It is available in two sizes – 10,000 lbs and 15,000 lbs. The NH series is compact and durable, and features a high-efficiency hydraulic motor that delivers superb performance. This hydraulic winch also features patented steel gears and an integrated, fail-safe brake. The NH series offers superb winches for both industrial and commercial applications, and is often used, for example, on smaller rescue vehicles. A cable guide and stainless steel fittings are included in the package.
The BAL001 balance valve must be purchased separately.
- Pulling capacity: 6,804 kg
- Connection: G1/2
- Wire rope type: 12 mm x 26.5 m (0.47 inches x 87 feet)
- Gear ratio: 33.4:1
- Mounting dimensions: 254 x 114.3 mm (10 x 4.5 inches)
