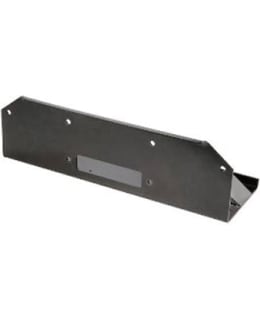

This sturdy winch mounting base is ideal for use with the Warrior Samurai 17,500–20,000 lbs electric winch, but it is also designed for use with other winches with a capacity of up to 20,000 lb (9,000 kg). It features a durable black powder-coated finish and comes pre-drilled for most standard winch models, whilst also allowing for customisation to suit your specific requirements during installation.
It is designed to fit the Samurai 17,500 and 20,000 lbs models, whether fitted with the mounting point facing downwards or forwards.
This mounting plate is suitable for the following winch models:• Warrior Winches Samurai 17,500 (175SS12, 175SS24, 175SA12, 175SA24)• Warrior Winches Samurai 20,000 (200SS12, 200SS24, 200SA12, 200SA24)• Warrior Winches Samurai 4,000 EN (40ENS12, 40ENS24).• Warrior Winches Samurai 5250 EN (52ENS12, 52ENS24).• Warrior Winches Samurai 6000 EN (60ENS12, 60ENS24).
Dimensions for the mounting base; Mounting diagram at the bottom; 254 x 114 mm and 254 x 161.5 mm
Front mounting diagram; 254 x 114 mm and 254 x 161.5 mm
- Overall dimensions of the unit; 640 x 285 x 260 mm
- Thickness; 7 mm
- Centre-to-centre distance of mounting holes; 255 mm
