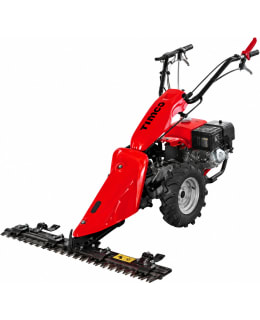

The Timco NL117G is a heavy-duty self-propelled sickle bar mower designed for mowing grass and other vegetation. The 117 cm cutting width allows smooth working even on larger areas. The machine is suitable for maintaining areas such as yards, meadows and fields.
The machine is equipped with a powerful Ducar 9 hp engine that is started with a recoil starter. The bidirectional cutting action makes it easier to work in different directions, while three forward and three reverse gears allow the working speed to be adjusted according to the situation. The cutting height is adjustable from 15–55 mm.
Technical specifications:
• Engine power: 9 hp
• Starting: Manual / recoil start
• Cutting mode: Bidirectional
• Working speed: 2.0 km/h
• Displacement: 284 cm³
• Cutting width: 1170 mm
• Forward gears: 0 / 1 / 2 / 3
• Reverse gears: 0 / 1 / 2 / 3
• Drive: Self-propelled
• Engine type: Horizontal shaft, single-cylinder, 4-stroke OHV engine, forced cooling
• Cutting height adjustment: 15–55 mm
• Blade material: Steel
• Shipping weight: 135 kg
• Package dimensions: 1250 × 510 × 490 mm
