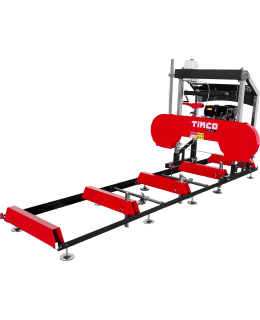

With the Timco portable band saw, you can cut planks and boards to the size you want, wherever you want. Fitted with a Ducar DH420 four-stroke engine. With this portable band saw, you can cut logs with a diameter of 31 inches (790 mm) using the standard 4.0 m saw table.
If you wish to cut longer logs, a separate extension is available for the sawing table, which increases its length to just under 6 m. The sawmill can cut all types of timber.
At the top of the sawmill is a water tank which lubricates the blade. Water can be used for lubrication in summer and windscreen washer fluid in winter.
Features:- Frame: Consists of four rail sections, crossbars and support legs
Technical specifications:- Ducar DH420 4-stroke internal combustion engine
- Net power: 12.2 hp (9.1 kW)
- Maximum power: 15 hp (11 kW)
- Engine oil: SAE 10W-30
- Fuel tank capacity: 4.0 l
- Maximum cutting capacity for logs: 31” ø 790 mm
- Blade dimensions: 3960 x 34 x 0.9 mm / 1-1/4″ W x 156″ L x 0.035″
- Blade tooth pitch: 22 mm
- Blade speed: approx. 17 m/s
- Cutting speed: 13–15 m/s
- Guide rail dimensions: 4000 x 900 mm
- Product dimensions: 4060 x 1800 x 1770 mm
- Product weight: 315 kg
- Package dimensions: 2150 x 570 x 830 mm
- Package weight: 355 kg
Accessories and consumables:- Timco KVS31 200 cm extension table
- Timco KVS31 carbide spare blade
