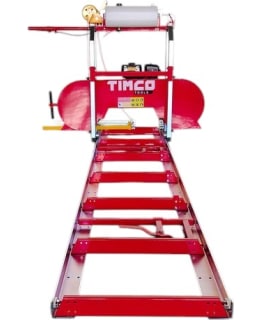

With the Timco field bandsaw you can saw boards and planks to the desired size in the desired place. Equipped with a Ducati DH212 four-stroke engine. With this bandsaw you can saw logs up to 18" or 45 cm in diameter using the standard 3.6 m saw table.
If you want to saw longer logs, a separate extension is available for the saw table, increasing the table length to 4.8 m. The sawmill can saw all types of wood.
The sawmill has a water tank at the top to lubricate the blade. For lubrication, water can be used in summer and glass washing fluid in winter.
Features:- Body: Consists of four rail sections and spacers
- The kit includes an adjustable blade guide
- Sawing length for logs: 3 m with standard cutting table
Technical specifications:- Ducar DH212 4-stroke internal combustion engine
- Engine oil: SAE 10W-30
- Water tank capacity 4.0 l
- Sawing capacity for logs max.: 18" ø 460 mm
- Blade size: 3050 x 32 x 0.9 mm / 1-1/4″ W x 120″ L x 0.035
- Blade speed: approx. 13-15 m/s
- Rail size: 3600 x 600 mm
- Product dimensions: 3000 x 1440 x 1420 mm
- Product weight: 145 kg
- Package size: 1400 x 550 x 510 mm
- Package weight: 167 kg
Accessories and wear parts:- Timco KVS18 120 cm extension table
- Timco KVS18 Carbide spare blade
