The Timco ATV-570R trailed excavator, as its name suggests, rotates 360 degrees and is powered by a reliable and powerful Ducar 15hp petrol engine. The sturdy and dexterous excavator is surprisingly capable of handling a wide range of earthmoving tasks.
The maximum digging depth of the Timco ATV-570R is 2.1 m and the maximum digging radius is 2.8 m. When operating the machine, the support legs are attached to the rear. During movement, the support legs are turned to the horizontal position. Moving is done by means of a 50 mm tractor head.
The machine is supplied with a 300 mm bucket. The versatility of the machine is enhanced by a wide range of accessories, such as various buckets, routing picks and grab chucks.

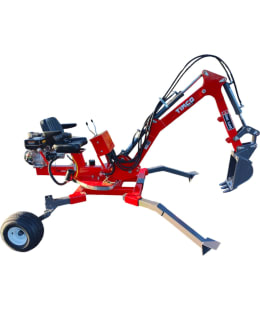

Note! Unlike the picture, the seat does not have handles!Specifications:- Weight: 570 kg
- Power: 15 hp petrol engine (DUCAR, traction start)
- Maximum digging depth: 2.1 m
- Maximum digging radius: 2.8 m
- Maximum digging height: 2.5 m
- Maximum loading height: 1.2 m
- Leg width: 1.8 m
- Swing radius: 360 degrees
- Bucket swing angle: 160 degrees
- Bucket width: 300 mm
- Dimensions: 2240 x 1000 x 850 mm
- Warranty: 12 months
Delivered unassembled in a transport frame.
