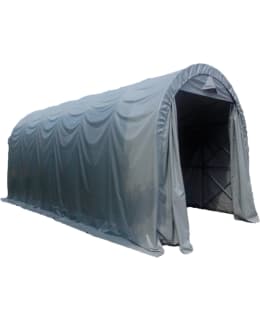

The tarpaulin shed is suitable for the temporary storage of a wide variety of goods and machinery, providing protection from both the weather and prying eyes. Please follow the instructions for use, particularly in windy locations and during winter use.
Features:- Dimensions (L x W x H): 4.5 x 9 x 3.5 m
- Door opening (W x H): 4.3 x 2.88 m
- Galvanised oval tubing (45 x 1.2 mm, 32 x 1.2 mm, 25 x 1.1 mm)
- Number of arches: 8
- Cover: PVC 500 g/m
- UV-protected 5 %
- Fire-resistant
- Colour: grey (shade may differ from the image)
- Includes a tarpaulin repair kit
Suitable replacement cover: 101824410 Timco 4.5 x 9 m 500 g grey replacement cover
Supplied in seven packages:- 73 x 63 x 32 cm, 71.2 kg
- 134 x 47 x 17.5 cm, 42 kg
- 144 x 30 x 14 cm, 27 kg
- 144 x 30 x 14 cm, 27 kg
- 184 x 21 x 12 cm, 23 kg
- 184 x 21 x 12 cm, 23 kg
- 140 x 25.5 x 13.5 cm, 35.3 kg
Please note!- The shed is not supplied with fixings.
- It is the responsibility of the person erecting the shed to obtain fixings suitable for the base and the shed’s structure, which will ensure the shed remains secure even in strong winds.
- Consult a construction professional to determine a suitable and adequate fixing method for the installation site.
- The appropriate fixing method depends on the wind conditions at the installation site and the underlying ground conditions.
- Retailers or importers are not liable for inadequate securing.
For winter use:- The shed’s roof must always be kept clean. Ensure that fallen snow does not remain on the shed roof.
- The shed cover must be taut. There must be no ‘pockets’ in the cover, particularly at the top of the shed.
- The shed roof stays cleaner when the cover is taut.
- Ensure that the shed frame is straight throughout. If the shed is built directly on the ground, there is a risk that the frame is not straight, which weakens its structural integrity.
- Under no circumstances should snow be cleared from the shed roof from the inside by pushing the cover. This can be life-threatening.
- Always clear snow from the outside using a tool that will not damage the cover.
- The warranty does not cover a shed that has collapsed due to the weight of snow.
In windy conditions:- Choose a wind-protected site for the shed
- We do not recommend erecting the hall in particularly windy locations, such as on the banks of waterways or in open fields.
- Erection must be carried out with particular care and the tarpaulin must be tensioned as tightly as possible.
- The frame must be secured to the ground or a base, for example using ground anchors or concrete blocks.
- In windy weather, ensure that the hall’s doors are closed.
- The warranty does not cover damage to the hall caused by strong winds or storms.
