This solar energy package includes everything you need to electrify your holiday home. All components have been carefully selected for maximum compatibility and functionality.
The package is built to ensure sufficient power for summer use, at the cottage, where you use a fridge, for example. In addition, the inverter allows the use of other small electrical appliances (e.g. coffee maker, vacuum cleaner).

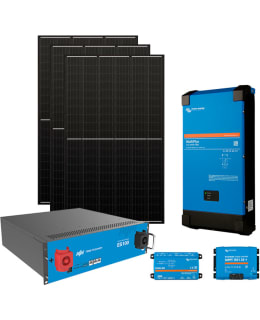

Contents of the package:
- 3 pcs 410W Half-cut all black solar panels + brackets *
- .1pc solar panel charger Victron MPPT
- 1pc inverter charger Victron Multiplus 48/2000/25
- 1pc TBB Rack battery 5,04kWh (48V)
- 1pc Victron Cerbo data centre
- 30m solar cable **
- Required fuses and cables
*
** Max distance between solar panel and solar panel controller 15m (additional cable to be ordered separately)
NOTE! The package does not include 230V indoor power supply. Installation of the indoor grid is the responsibility of the customer. Connection of the 230V inverter to the indoor grid always requires a company with the appropriate permits or its representative.
HALF-CUT SUN PANELS
Traditional solar panels lose significant output when disturbed by shadows, dirt, snow or other obstacles. Black-framed Half-Cut solar panels have half-cut cells with laser technology. By halving the cells, they produce less waste heat and more electricity. If one half of the panel is obstructed by a shadow, the other half continues to produce at full power. This significantly improves the efficiency of the panels. The solar panels have a 10-year product guarantee and a 25-year output guarantee.
VICTRON MULTIPLUS
MultiPlus is, as the name suggests, a package that combines both an inverter and a charger. Its many features include a true sine wave inverter, adaptive charging, PowerAssist hybrid technology and a range of system integration functions. The Multiplus' built-in charger allows you to easily connect an external power source (mains, generator, aggregate). Victron Energy products all come with a 5-year product warranty.
TBB RACK BATTERY
TBB batteries are high quality, multi-purpose LiFePO4 battery technology lithium batteries. These batteries can be connected together up to 32 times as needed and guarantee a very long service life (6000 charge cycles), which can be up to ten times longer than AGM batteries. The 5kWp capacity of a single battery module (48V/105Ah) is roughly equivalent to three 12V/260Ah AGM batteries. This is because a lithium battery can discharge up to 90-95% while an AGM battery can discharge only 50%. In addition, the lithium battery can accept and deliver larger amounts of current, which makes charging, for example, faster.
VICTRON CONNECT
Control, configure and upgrade your devices effortlessly. Easily connect to Victron Smart products via Bluetooth, USB/Wifi/LAN or remotely via the internet.
SUNWIND
Sunwind has over 30 years of experience in electrifying off-grid summer cottages. With a solar energy package from us, you can be sure that the products are of high quality and compatible with each other, and that you will receive the best possible technical support even after purchase.
Weight (kg):200
Accumulator voltage:48 volts
Inverter power:2000 VA
Solar panel power:1200W
Available energy of the battery bank:5 kWh
Method of installation of solar panels:Roof installation
Requires a certified installer:Yes
