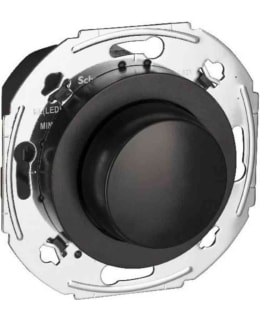

Renova UNI400LED is a light controller with a wide power range, with a minimum power of 4 W. In addition to traditional lamp loads, it is approved for the control of dimmable LED lamps and lamps. Renova UNI400LED is a recommended choice even when the light controller is connected to a light socket, and the light source is not known during the installation phase.
Renova UNI400LED does not need a neutral wire, so it can be installed in place of an existing switch. It is also suitable for stair light switching. The maximum and minimum level of the light control range can be adjusted. Short-circuit and overload protection is electronic (no fuse). Maximum switchable power:
4-400 W light bulbs,
4-400 W halogen lamps 230V,
4-400 VA electronic transformers,
4-400 VA iron core transformers,
4-200 W LED lamps, or
4-40 W LED lamps in RL mode
The operating principle of the UNI400LED is a universal regulator: it recognizes the connected load and acts as a regulator that cuts the rising (RL) or falling (RC) edge. If flickering occurs with the LED lamps, the control mode can be permanently set to RL mode. In this case, the maximum switchable power drops to 40 W.
Tightness class IP21
Surface installation in a 35mm surface device box
• Color: black
• Load type: general purpose and renovation LED
• RAL number (equivalent): 9005
• Assembly: basic element with center plate
• Nominal voltage range: 230 V
• App control (Bluetooth): no
• Connection method: screw connection
• Minimum depth (built-in device case): 40 mm
• Device width: 71 mm
• Device height: 71 mm
• Device depth: 29 mm
• Dimming rising edge control: yes
• Dimming falling edge control: yes
• Conductor cross-section: 2.5 mm²
• Fastening method: screw fastening
• Installation method: flush mounting
• Mode of operation: twist/button
• Frequency: 50-60 Hz
• Crown light control: no
• Material quality: thermoplastic
• Material: plastic
• Halogen-free: yes
• Lighting level memory: yes
• Suitable for enclosure class (IP): IP20
• Available with button: no
• Can be used with a motion detector: no
• Can be used with presence detector: no
• Can be used with clock switch/timer: no
• Usable with RF button: no
• Usable with IR button: no
• Transparent: no
• Surface material: glossy
• Surface protection: untreated
