Wiser is a smart home system that makes your home more comfortable, safe and energy efficient. The Wiser smart home consists of a variety of devices that can be controlled wirelessly in different ways. The Wiser phone app can be used for convenient situation controls, timers or automation based on weather changes, for example. The devices also talk to each other, so home activities can be automated to happen without the user's attention. Wiser can be installed on standard cabling or wirelessly.
Control and operating settings

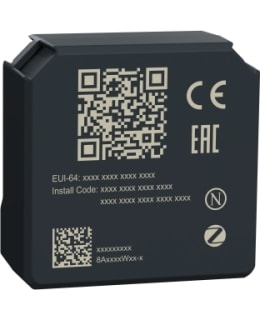

Connected control: to control the curtain controller module from a smartphone using the Wiser by SE app, it must be connected to the Wiser control panel.
Direct operation: the Curtain Controller Module can always be controlled directly with a separately connected button.
Up to 10 spring-loaded buttons can be connected as additional controllers.
Technical specifications
Rated voltage: 220-240 V AC, 50/60 Hz
Rated current: 4 A, cos f = 0,6-1,0
Dimensions (H × L × W): 43 × 43 × 22 mm
Mounting: To be mounted in a stall box or in a high surface-mounted stall box
Zero conductor required
Certification: Zigbee 3.0
Features and settings:
Motor protection with two alternately interlocked relays
Control by mechanical pushbuttons - 10 in total
Motors for window blinds and roller blinds must be equipped with limit switches
via the Wiser by SE application:
Setting the drive time
Setting of timer or schedule
To fully operate the Schneider Electric Wiser system, a central unit (CCT501901), the Wiser by SE smartphone app, a user account and Internet access are required. Use of the system is free of charge.
