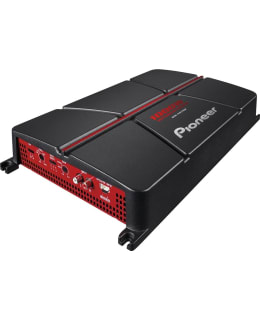

The GM-A5702 will give your system a new lease of life! The amplifier offers plenty of power, a stylish appearance, and a wide range of installation options.
It also has built-in low-pass and high-pass filters, allowing you to use all types of speakers.
Like all Pioneer products, this amplifier has been thoroughly tested to ensure you enjoy the best sound quality in your car.
Speaker-level inputs - Connect your OEM system without additional wiring kits.
Technical specifications:
Adjustable LPF: 40-500Hz (-12 dB/oct)
Screw-type speaker terminals
Speaker-level input sensitivity: 3 - 26 V
Maximum power consumption: 31A
Peak power: 1000W (bridged) or 2 x 300W (4Ω) or 2 x 500 W (2Ω)
Continuous power: 2 x 150W (4 Ω) or 2 x 240W (2Ω) or 1 x 480 W (4Ω) bridged
CEA 2006 power: 2 x 150W (4 Ω)
Impedance: 2–8 ohms
Frequency response: 10Hz ~ 70kHz (+0dB, -3dB) Hz
Distortion: 0.05%
Signal-to-noise ratio: 96 dB
Dimensions (W x H x D): 356 x 60 x 215 mm
Weight: 2.2 kg.
