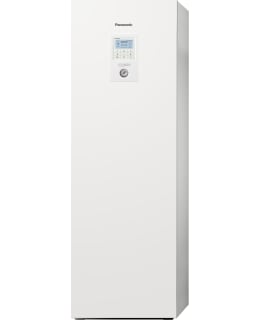

Panasonic Aquarea WH-ADC0916H9E8 All in One H-generation 1- and 3-phase 9-16kW Split air-to-water heat pump indoor unit with R410A refrigerant , with a built-in 185-liter hot water storage tank. The indoor unit moves the hot gas produced by the outdoor unit forward with the help of a heat exchanger, heating the service water and the water of the heat distribution network to a suitable temperature. The indoor unit installed on the floor has an intelligent control system (suitable for controlling 1 heating circuit), as well as a built-in 9kW 3-phase electric resistance as an additional energy source in severe frosty weather.
The All in One indoor unit is easy to install, it already contains all the necessary control automation, as well as a 185 liter roaster water storage tank. The tank has very efficient U-VACUA insulation, which is 19 times better than urethane insulation of the same thickness. The All in One indoor unit is particularly suitable for new projects, but it is also easy to install in renovation projects with normal room height.
The indoor unit contains top quality parts- Maintenance-free stainless Inox tank, 185 L
- Speed adjustable water pump (A class)
- Magnetic filter and service valve
- Expansion vessel
- Vortex flow meter
- Backup heater 9kW
- Safety valve
- Air release valves
- Three-way valve inside
The indoor unit is suitable for use with H-generation 9-16kW outdoor units (which use R410A refrigerant), for example
- Panasonic Aquarea High Performance
- WH-UD09HE8 / 9.0 kW
- WH-UD12HE8 / 12.0 kW
- WH-UD16HE8 / 16.0 kW
- Panasonic Aquarea T-CAP
- WH-UX09HE8 / 9.0 kW
- WH-UX12HE8 / 12.0 kW
- WH-UX16HE8 / 16.0 kW
- Panasonic Aquarea T-CAP Quiet , very quiet outdoor unit
- WH-UQ09HE8 / 9.0 kW
- WH-UQ12HE8 / 12.0 kW
- WH-UQ16HE8 / 16.0 kW
For defrosting the outdoor unit, a mandatory outdoor unit base resistor Panasonic product number CZ-NE3P is required.
Please note that Split air-to-water heat pumps require a license for the concept of refrigerant.
Example units of air water system- All in One
- Panasonic Aquarea High Performance WH-UD09HE8 / 9.0 kW, WH-UD12HE8 / 12.0 kW, or WH-UD16HE8 / 16.0 kW Split outdoor unit
- Panasonic Aquarea WH-ADC0916H9E8 All in One H generation 1- and 3-phase 9-16kW Split air-to-water heat pump indoor unit with 9kW electric resistance as additional heat source
- We also recommend a buffer tank (min 100L - 200L), but it is not necessary in all cases
- Panasonic outdoor unit bottom resistor CZ-NE3P
Buying a device containing F-gases - notification of using a qualified installation shopIf changes are made to the heat pump's refrigerant circuit and it contains fluorinated greenhouse gases, connecting the circuit requires a refrigerant qualification issued by Tukes. As a sales company, we must ensure that the refrigeration circuit is connected by a qualified installation company or installer. You can easily find a qualified installer in your area, for example, in
Tukes' register of operators . Select a town from the list and click search.
Information and submission of the F gas formAfter ordering the heat pump, fill in all the information on the attached F-gas form and save it as an e-mail attachment. Enter the order number you received from the Karkkainen.com online store in the subject field of the email. Send a PDF file filled with the correct information by e-mail to tilauskasitettely@karkkainen.com. After receiving the email, your order will be processed and you can follow the delivery of the cargo as usual.
Features of the heat pump- Installation of split-type air-to-water heat pumps requires an F gas permit, R410A refrigerant
- Smartphone control, available as an accessory, can be connected as part of a smart home system
- Maximum flow water temperature 60 °C
- High heating and cooling capacity, even at very low outside temperatures
- Works with the compressor at full capacity without additional heating even at a temperature of -20 °C and produces heat down to -28 °C
- Works in cooling mode when the outside temperature is only 10 °C
- The internal magnetic filter facilitates installation
- Suitable as an independent heating system, or alongside an existing system
- The compressor has a 5-year warranty
Dimensioning the air-to-water heat pumpPanasonic Aquarea air-to-water heat pumps are suitable as a heat source for water-circulating radiators and floor heating objects, as well as for producing hot domestic water. Dimensioning the right size/power class of the heating system can be done, for example, according to the peak power demand (W/m2) for heating during severe frosts.
The maximum surface area to be heated in relation to the heating power of the heat pump
- Heat pump heating power: 9-16kW
- Surface area to be heated
- New properties (40W/m2): 230m2 - 400m2
- Renovation sites (55W/m2): 160m2 - 290m2
- Log houses (75W/m2): 90m2 - 120m2 - 210m2
- In calculating the surface area, normal room height (max 2.8m) and indoor temperature (21 °C) have been used, as well as an estimate of the average design outdoor temperature in Finland.
- To ensure sufficient heating capacity, please note that your heating system always has an additional electric resistance/other back-up heating system for winter's extreme cold (below -28 °C), when the air-to-water heat pump does not produce heat. The power of the electric resistance must be at least equal to the peak heating power requirement / the power of the outdoor unit of the air-to-water heat pump. An additional resistor can be placed, for example, in a buffer charger or a hybrid charger, if the electrical resistance of the indoor unit itself is not yet high enough (usually applies to systems over 9kW).
Sufficiency of
domestic hot water according to the number of persons / volume of the hot water heater
- Capacity of the hot water tank, 2-6 people: 150L - 200L
- Capacity of the hot water storage tank, 6-10 people: 300L - 400L
- Domestic water tank capacity, 10-15 people: 500L - 750L
The buffer accumulator of the heat distribution network balances the operation of the heat pump, it makes the operating periods of the compressor long enough and helps the heat pump to work as planned. It is especially useful when heat is produced in a water-circulating radiator network, where the amount of water is typically smaller than, for example, in water-circulating floor heating sites. We recommend the use of a buffer accumulator at least with radiators, it also helps with underfloor heating, especially in heating situations in damp rooms during the summer, when the amount of water in the floor circulation is small when the rest of the underfloor heating circuit is closed. In these situations, even the inverter compressors may run intermittently without the buffer charger connection.
- The volume of the buffer tank in relation to the power of the heating system is chosen as a rule of thumb at a minimum of 10L/1kW
- Buffer tank volume with heating power 9-16 kW: 100L - 300L
* Dimensioning calculations are indicative examples in a normal situation, and we do not bear responsibility for the calculations when the use of the heating system, as well as environmental and climate conditions vary.The equipment manufacturer's dimensioning table helps in choosing the right modelheating system,
Panasonic Aquarea : | All in One
9, 12 and 16kW | Split Bi-Block
9, 12 and 16kW |
| Surface area to be heated | | |
| Apartment 190-230 m²: | ✔ | ✔ |
| Apartment 150-190 m²: | ✔ | ✔ |
| Apartment 100-150 m²: | ✔ | ✔ |
| Apartment 50-100 m²: | ✔ | ✔ |
| New construction: | ✔ | ✔ |
| Summer cottage: | ✔ | ✔ |
| Characteristics | | |
| SCOP, highest value: | 5.09
A+++ / A++ | 5.09
A+++ / A++ |
| In T-cap version: | ✔ | ✔ |
| Heating circuit version of 2: | | |
| In a very quiet version: | ✔ | ✔ |
| High flow water temperature (65 °C): | | ✔ |
| The service water tank is included in the delivery: | ✔ | |
| The Smart Heat Pump function is included in the delivery: | ✔ | ✔ |
| Compatible with Smart Cloud service: | ✔ | ✔ |
| Compatible with solar panels: | ✔ | ✔ |
| Compatible with the AQUAVENT FTX aggregate (3-9kW models): | ✔ | |
| Compatible with Aquarea Air radiators: | ✔ | ✔ |
Heat pump technical data- Indoor unit: WH-ADC0916H9E8, Aquarea High Performance, All in One Split, H generation, 1-/3-phase power supply, Heating or cooling, R410A
- Sound pressure Heating / cooling dB(A): 33 / 33
- Dimensions H x W x D, mm: 1800 x 598 x 717 / 126
- Net weight, 1 zone / 2 zones kg:
- Connection for the heating circuit inches: R 1¼
- Class A pump
- Number of speeds: Variable speed
- Intake power (minimum / maximum) W: 36 / 152
- Heating water flow (ΔT = 5 K, 35 °C) l/min: 25.8
- Built-in electric heater capacity kW: 9
- Current input 1 / A: 8.8
- Power supply 2 / A: 13
- Domestic hot water, liters: 185
- Maximum water temperature °C: 65
- Tank inner material: Stainless steel
- Plug profile according to standard EN16147: L
- Hot water storage tank, ERP, average climate, efficiency: A
- Hot water storage tank, ERP, average climate η / SCOP ηwh % / SCOP: 95 / 2.38
Panasonic Aquarea air to water heat pumpsPanasonic manufactures high-quality air-to-water heat pumps for the heating needs of apartments and commercial premises. The wide selection of Aquarea heat pumps from 3 to 16 kW will help you find the right system for your heating or cooling needs. Cost-effective and environmentally friendly solutions are suitable for both new construction and renovation projects. In Panasonic's extensive collection, you will find a heat pump model suitable for your house, with which you can maximize comfort and the savings produced by the heat pump.
ApplicationsThe Aquarea air-to-water heat pump is a good solution for new or existing households, as well as for all kinds of properties. The systems are particularly suitable for locations with water-circulating radiators and/or water-circulating underfloor heating. The system can work independently, or it can be combined with an existing gas, wood or oil-fired, etc. heating system as needed.
Increases user comfortThe Aquarea air-to-water heat pump is able to precisely adjust the temperature thanks to reliable Panasonic inverter compressors and easy-to-use control features. Aquarea heats your home efficiently even in more demanding conditions, the heat pumps work up to -28 °C outside temperature, and they work with the compressor at full capacity without additional heating even at a temperature of -20 °C. The heat pump has a wide range of different adjustment features, which you can use to ensure complete living comfort, as well as sufficient hot domestic water.
An air-to-water heat pump takes energy from the outside airBased on advanced air-to-water heat pump technology, Aquarea is a very efficient and environmentally friendly system. It captures energy from the surrounding air and transfers it to the heating of the water and hot domestic water needed for heating the home and, if necessary, also cools your house. The system takes up to 80% of the required energy from the ambient air, even at very low temperatures.
Savings opportunitiesWith an air-to-water heat pump, it is possible to save up to more than 50% of the annual heating costs, at best even more. Its use is safe, carefree and effortless. With an air-to-water heat pump that utilizes new technology, home heating can be regulated in a much more versatile, intelligent and precise manner compared to, for example, traditional electric, wood and oil heating boilers. An air-to-water heat pump is typically more affordable in terms of acquisition costs than, for example, a geothermal heat pump.
