NarviTakkahormi is a domestic high-quality and safe choice for stoves and fireplaces. The content of the delivery package is extensive. In the design of the flue, special attention has been paid to fire safety and the cooling of the flue with regard to the passage through the inner ceiling. The modular structure of the steel chimney facilitates installation.
The outside jacket of the flue is made of galvanized steel painted with black heat-resistant paint and its diameter is 280 mm. The chimney's insulation is non-combustible mountain wool and its stainless inner tube is 150 mm in diameter. The thickness of the inner tube is 1 mm. The flue also has a fixed smoke damper. The safe Narvi Teräshormi has CE approval entitling it to T600 fire safety class.
The insulated part of Narvi Teräshormi 24 is 2,400 mm long and contains all the parts needed for installation. Basic package max. total dimension is approx. 2,530 mm without extensions. Narvi Teräshormi 24 is also suitable for Aitokiuas AK-47, AK-57 and AK-68 chimneys. The connection to the Aitokiuga can be easily done using the separately sold (6180) connection flue Ø150/148 x500.

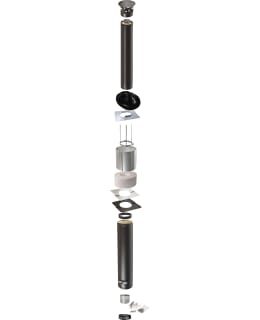

•1200mm insulated flue section and 1200mm insulated flue section (inner diameter of flue pipe 150mm)
•Protective collar
•130mm non-insulated, stainless connecting pipe (inner diameter 150mm)
•Retaining strap
•Through flange 0–22°
•Vapor barrier flange 0–22° and vapor barrier tape
• Penetration insulation 200mm
• Pass-through jacket, height 400mm
• Chimney bracket collar with hole bands
•Underlayment support
•Water roof sealing rubber
•A barrel hat
Basic package max. total dimension is approx. 2530 mm without extensions.
