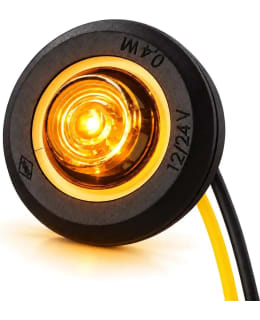

The Monsterlux Horus Black Optic yellow LED perimeter light, round, for flat surfaces, is a yellow LED decorative light featuring a dark Black Optic lens. When switched off, the light has a subtle appearance, and when switched on, the yellow light is clearly visible through the lens. This model is a decorative light and does not have E-type approval, so it does not replace the vehicle’s statutory side lights. An approved yellow side light can be found in the oval model from the same range (ECE R148).
The low-profile round housing (Ø 28 × 19.1 mm) is mounted on a flat surface, such as the body of a trailer, lorry or van, and thanks to its small size, it also fits into tight spaces. A wide 12/24 V operating voltage range, low power consumption and IP68 protection make it suitable for trailers, lorries, vans and work vehicles.
The light has 1 LED and a 500 mm open twin-core connection cable (2 × 0.75 mm²), which is connected to the vehicle’s wiring using watertight connectors. Ensure that the cable entry is sealed and protected from sharp edges. The Horus range includes white, yellow and red lights in both round and oval shapes, giving the front, sides and rear of the vehicle a consistent, dark look.
Technical specifications
• Product number: 3555-601911
• Make and model: Monsterlux Horus Black Optic yellow round flush-mounted
• Function: Decorative light
• Light colour: Yellow (orange)
• Lens colour: Dark (Black Optic)
• Operating voltage: 12/24 V
• Power: 0.2 W (12 V) / 0.4 W (24 V)
• Current consumption at 13.7 V: approx. 0.02 A
• LEDs: 1 x LED
• Road-approved: No (decorative light)
• Approvals: No approval
• IP rating: IP68
• Connection: 2-pin open-ended cable, 2 × 0.75 mm²
• Cable length: 500 mm
• Shape: Round
• Dimensions: Ø 28 × 19.1 mm (Diameter|Height)
• Mounting: Flat surface
• Operating temperature: -30 – +50 °C
