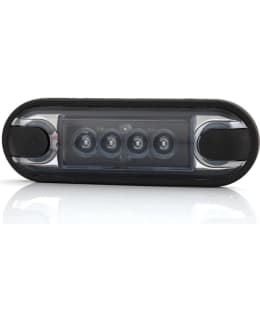

The Monsterlux Horus Black Optic yellow LED side light for oval flat and tubular surfaces is a yellow LED side light featuring a dark Black Optic lens. When switched off, the light has a discreet appearance, and when switched on, the yellow light is clearly visible through the lens. The light is E-approved (ECE R148 category SM1, ECE R10) and is fitted to the side of the vehicle as a visible marker.
The slim, oval housing (84.2 × 27.7 mm) is suitable for both flat surfaces and tubes. Two rubber mounts are included – one for a flat surface and one for a tube – and these also cover the fixing screws. The light is secured with two screws, with a centre-to-centre distance (CC) of 58 mm. A wide 12/24 V operating voltage range, low power consumption and IP68 protection make it suitable for trailers, lorries, vans and work vehicles.
The light features 4 LEDs and a 500 mm open twin-core connection cable (2 × 0.75 mm²), which is connected to the vehicle’s wiring using watertight connectors. The Horus range includes white, yellow and red lights in both round and oval shapes, so you can achieve the same dark look at the front, sides and rear of the vehicle.
Technical specifications
• Product number: 3555-601912
• Make and model: Monsterlux Horus Black Optic yellow oval slim
• Function: Side light
• Light colour: Yellow (orange)
• Lens colour: Dark (Black Optic)
• Operating voltage: 12/24 V
• Power: 0.5 W (12 V) / 1 W (24 V)
• Current consumption at 13.7 V: approx. 0.04 A
• LEDs: 4 x LED
• Road-approved: Yes
• Approvals: ECE R148 (category SM1), ECE R10 (EMC)
• Approval number: E9*148R00/05*22961*00
• IP rating: IP68
• Connection: 2-pin open-ended cable, 2 × 0.75 mm²
• Cable length: 500 mm
• Shape: Oval (slim)
• Dimensions: 84.2 × 27.7 mm (Length|Height), depth 11.0 mm / 15.2 mm (surface/pipe mounting)
• Mounting spacing: CC 58 mm
• Mounting: Surface and pipe mounting, 2 rubber pads included
• Operating temperature: -30 – +50 °C
