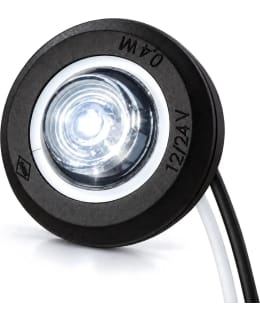

The Monsterlux Horus Black Optic white LED round flat-mounted front light is a white LED front light featuring a dark Black Optic lens. When switched off, the light has a discreet appearance, and when switched on, the white light is clearly visible through the lens. The light is E-approved (ECE R148 Category A, ECE R10) and is fitted to the front of the vehicle to serve as a forward-facing contour marker.
The low-profile round housing (Ø 28 × 19.1 mm) is mounted on a flat surface, such as the body of a trailer, lorry or van, and, thanks to its small size, it also fits into tight spaces. A wide 12/24 V operating voltage range, low power consumption and IP68 protection make it suitable for trailers, lorries, vans and work vehicles.
The light has 1 LED and a 500 mm open twin-core connection cable (2 × 0.75 mm²), which is connected to the vehicle’s wiring using watertight connectors. Ensure that the cable entry is sealed and protected from sharp edges. The Horus range includes white, yellow and red lights in both round and oval shapes, giving the front, sides and rear of the vehicle a consistent, dark look.
Technical specifications
• Product number: 3555-601921
• Make and model: Monsterlux Horus Black Optic, white, round, flush-mounted
• Function: Front position light
• Light colour: White
• Lens colour: Dark (Black Optic)
• Operating voltage: 12/24 V
• Power: 0.2 W (12 V) / 0.4 W (24 V)
• Current consumption at 13.7 V: approx. 0.02 A
• LEDs: 1 x LED
• Road-approved: Yes
• Approvals: ECE R148 (Category A), ECE R10 (EMC)
• IP rating: IP68
• Connection: 2-pin open-ended cable, 2 × 0.75 mm²
• Cable length: 500 mm
• Shape: Round
• Dimensions: Ø 28 × 19.1 mm (Diameter|Height)
• Mounting: Flat surface
• Operating temperature: -30 – +50 °C
